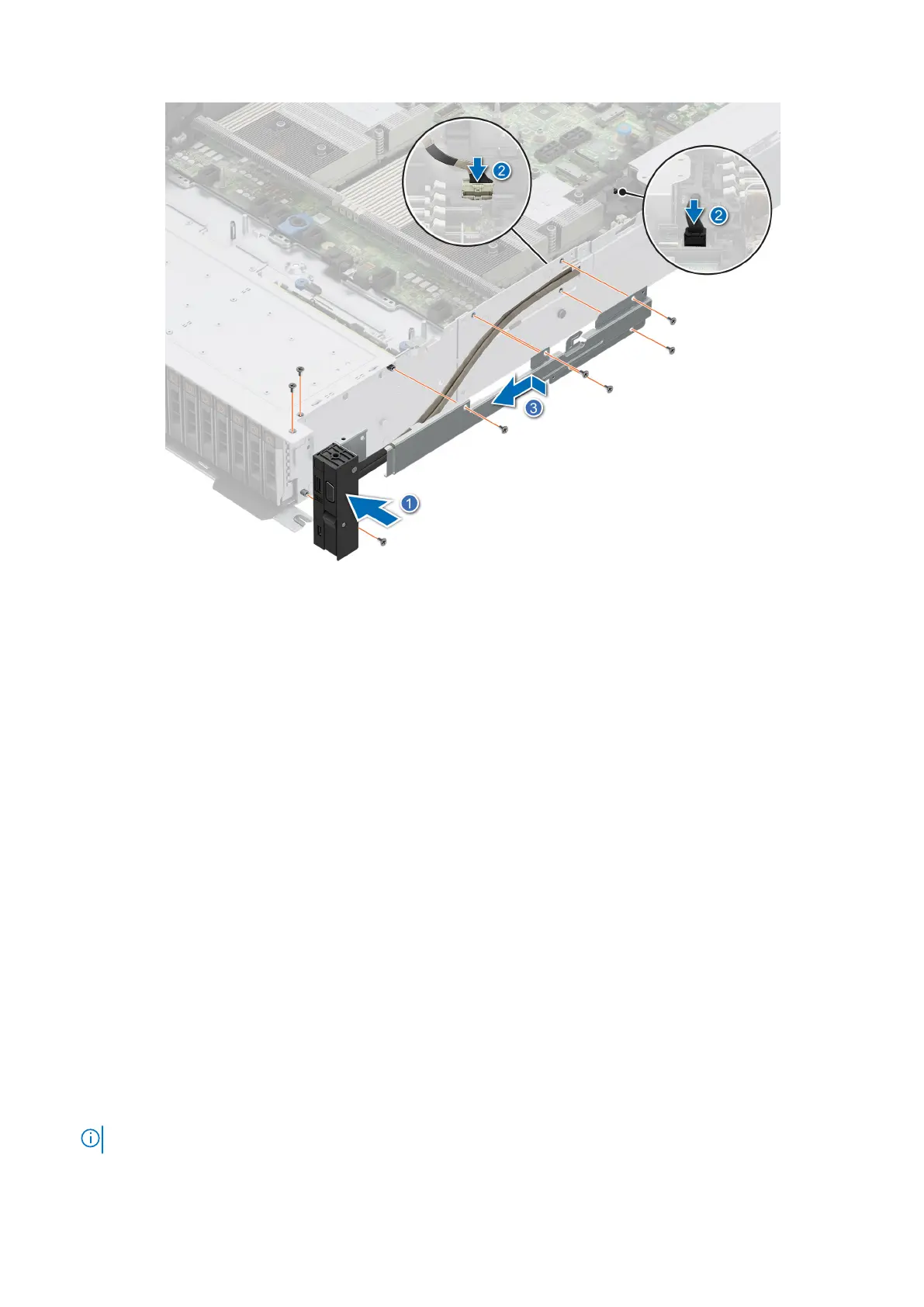

Figure 202. Installing the right control panel
Next steps
1. Install the side wall bracket.
2. Install the cooling fan assembly.
3. Install the drive backplane cover.
4. If removed, install the air shroud.
5. Follow the procedure listed in After working inside your system.
Removing the left control panel
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
3. Remove the drive backplane cover.
4. If installed, remove the air shroud.
5. Remove the cooling fan assembly.
6. Remove the side wall bracket.
Steps
1. Disconnect the control panel cable from the connector on the system board.
2. Using the Phillips #1 screwdriver, remove the screws that secure the left control panel and the left control panels cable
cover to the system.
3. Hold the left control panel cable, and slide the left control panel out of the system.
NOTE: Observe the routing of the cable as you remove the right control panel from the system.
Installing and removing system components 235
