NOTE: The numbers on the image do not depict the exact steps. The numbers are for representation of sequence.

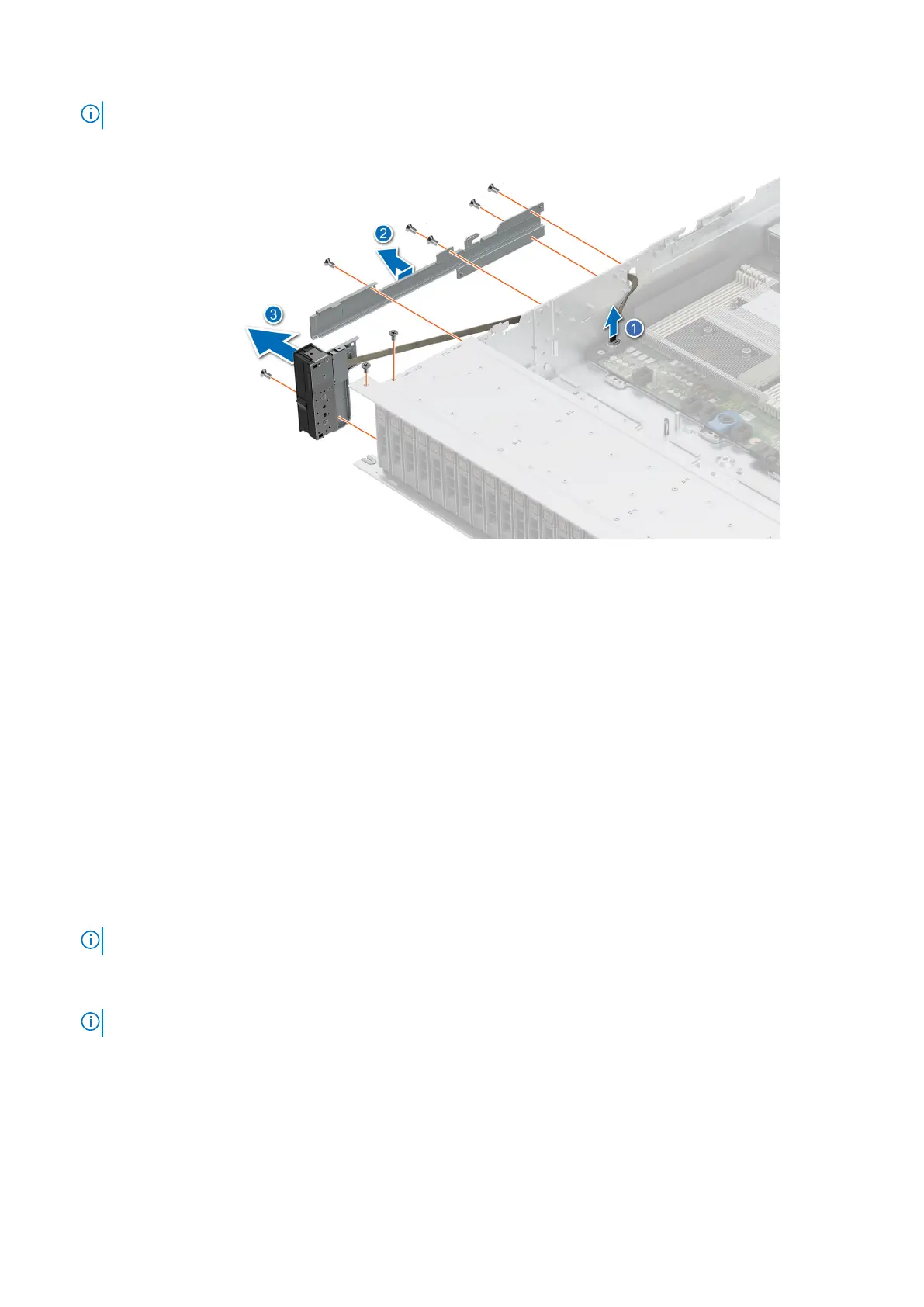

Figure 203. Removing the left control panel
Next steps
1. Replace the left control panel.
Installing the left control panel
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
Steps
1. Align and slide the left control panel in the slot on the system.
2. Connect the left control panel cable to the connector on the system board .
3. Route the left control panel cable through the side wall of the system. Align and slide the left control panel cable cover in the
slot on the system.
NOTE: Route the cable properly to prevent the cable from being pinched or crimped.
4. Using the Phillips #1 screwdriver, tighten the screws to secure the left control panel and the left control panel cable cover to
the system.
NOTE: The numbers on the image do not depict the exact steps. The numbers are for representation of sequence.
236 Installing and removing system components
