4. Remove the GPU air shroud top cover.
5. If installed, remove the GPU air shroud filler.
6. If removed, install the GPU into the expansion card risers.
NOTE: Full length risers are supported only in Riser 1 and Riser 4 slot and first install Riser4 and then Riser1.
Steps
1. If installed, remove the riser blanks by loosening the captive screws.
NOTE: Store the Riser blanks for future use. Filler brackets must be installed in empty expansion card slots to maintain
Federal Communications Commission (FCC) certification of the system. The brackets also keep dust and dirt out of the
system and aid in proper cooling and airflow inside the system.

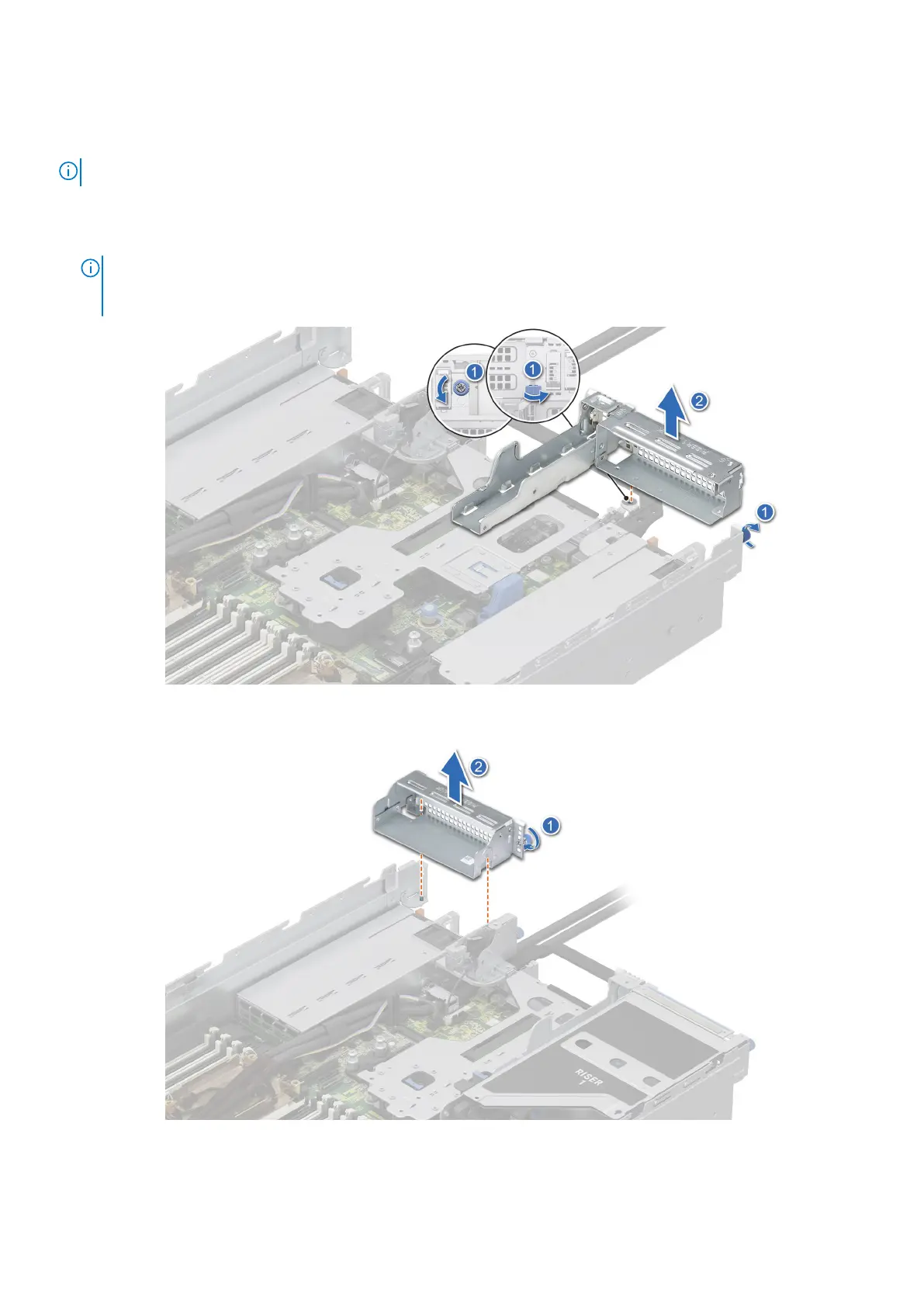

Figure 156. Removing the Riser 1 blank
Figure 157. Removing the Riser 4 blank
Installing and removing system components
197
