Dell Precision 3440 Small Form Factor - Page 11

About this task

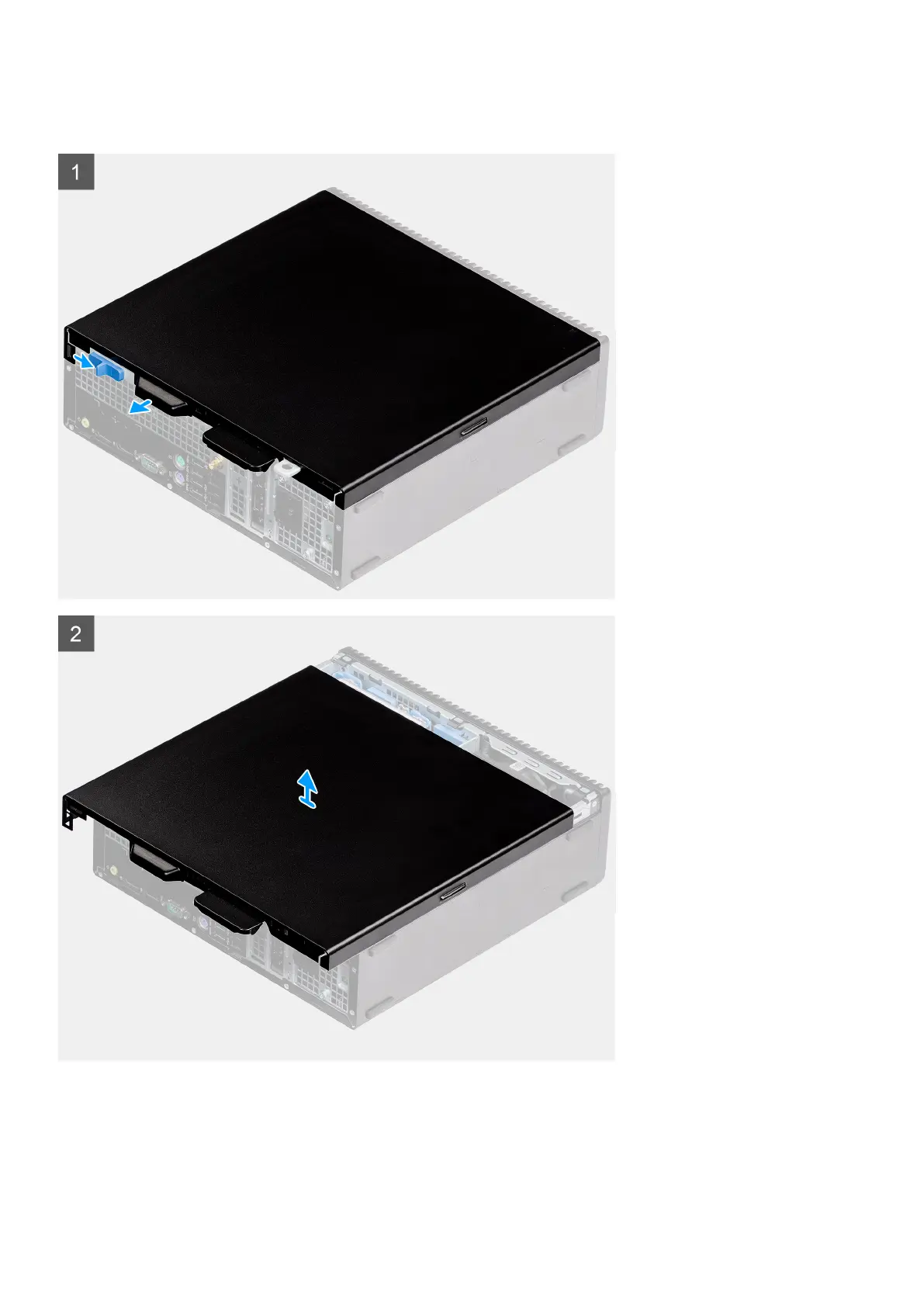

The following images indicate the location of the side cover and provides a visual representation of the removal procedure.
Steps
1. Slide down on the release latch until your hear a click.
2. Slide the side cover towards the back of the system.
3. Lift the side cover from the system.
Disassembly and reassembly
11
