Steps
1. Remove the SATA cables from the retention clip on the support bracket.
2. Remove the two screws (M6x32) and slide the support bracket out from the slot.
3. Remove the power-supply cable from the retention clip on the chassis.
4. Remove the three screws (M6x32) that secure the power-supply unit to the back of the chassis.
5. Press the power-supply unit release latch and slide the unit into the chassis.
6. Remove the power-supply unit out of the chassis.
Installing the power-supply unit
Prerequisites
About this task

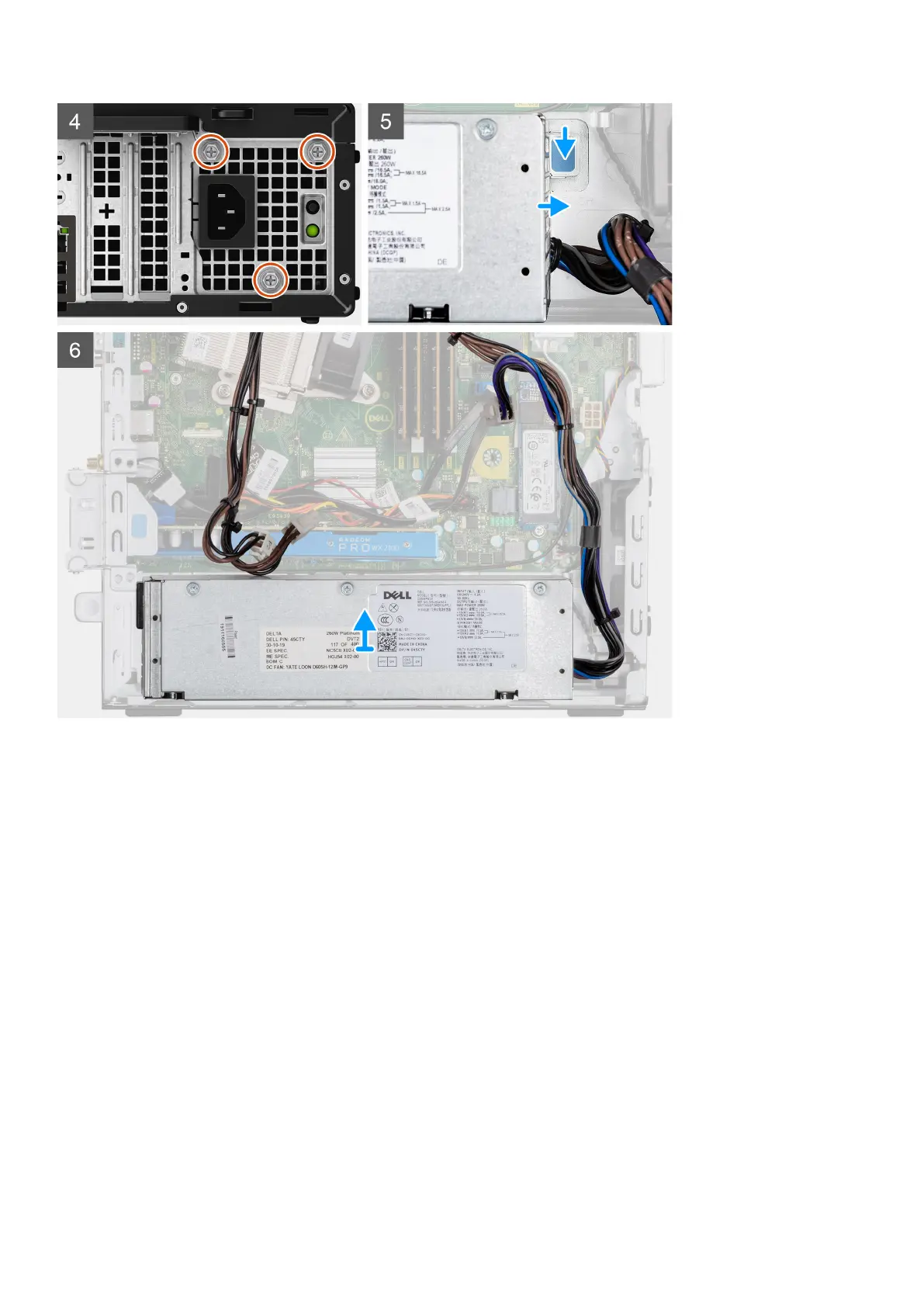

The following image indicates the location of the power-supply unit and provides a visual representation of the installation procedure.
Disassembly and reassembly
