Installing the slim optical-drive
Prerequisites
About this task

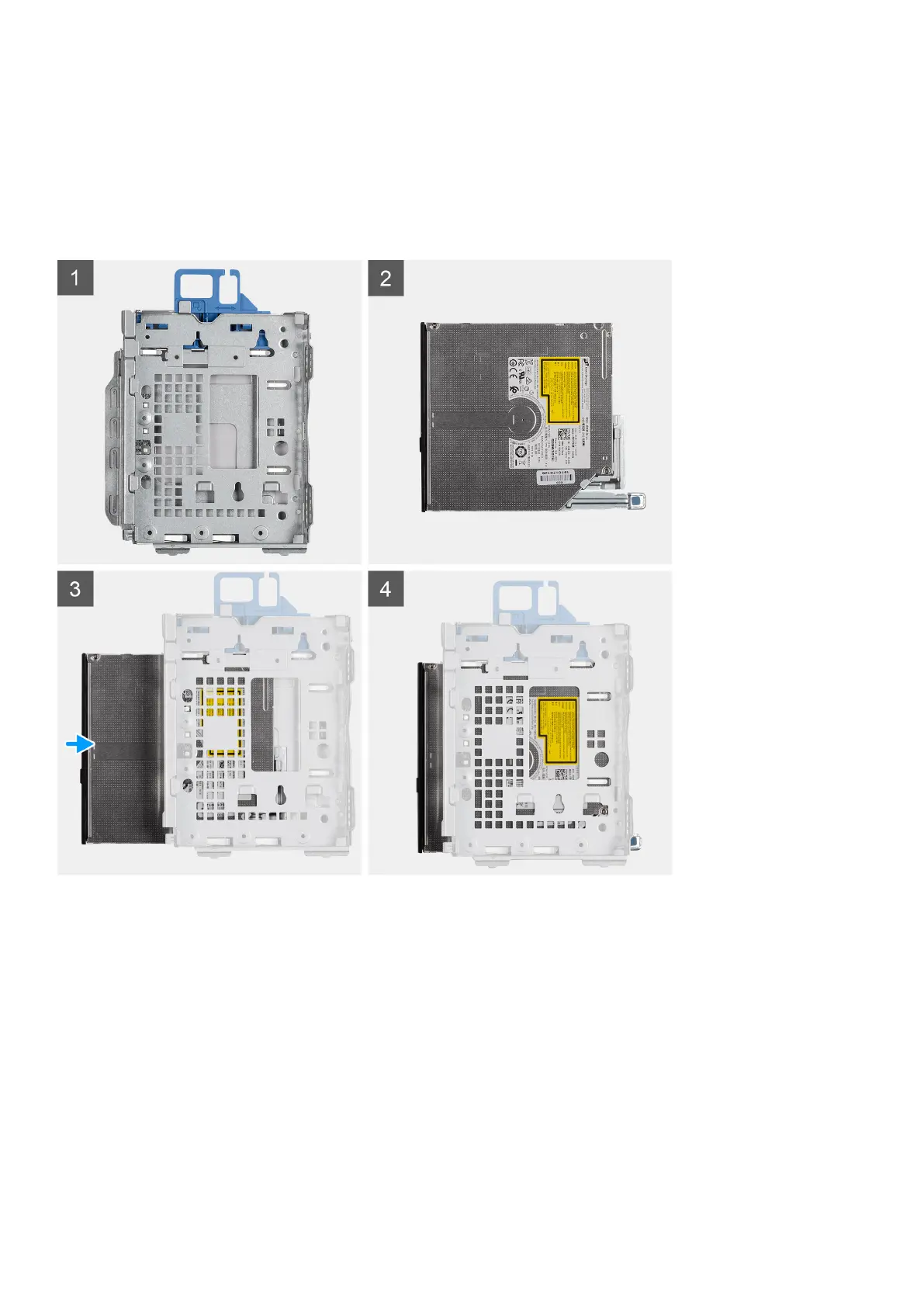

The following image indicates the location of the slim optical-drive and provides a visual representation of the installation procedure.
Steps
1. Optical drive/ hard drive module.
2. Optical drive unit.
3. Insert the optical drive into the optical drive/ hard drive module.
4. Press the Optical drive unit until it clicks in place.
Next steps
1. Install the Side cover
2. Install the Front bezel
3. Follow the procedure in After working inside your computer.
26
Disassembly and reassembly
