Steps

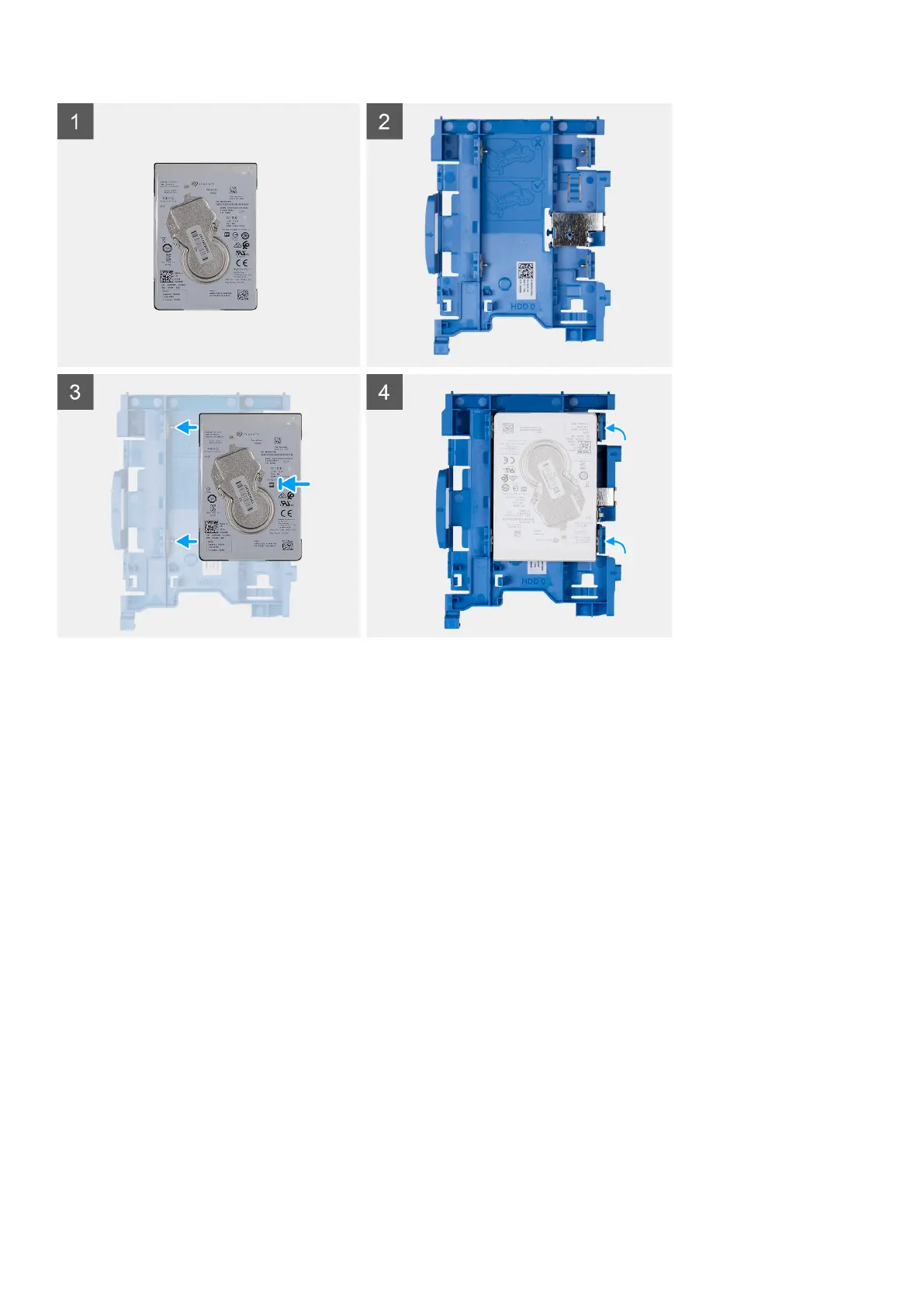

1. 2.5 in. hard-disk drive.
2. Hard-disk drive bracket for the 2.5 in. hard-disk drive.
3. Align and insert the pins on the drive bracket with the slots on the hard-disk drive.
4. 2.5 in. hard-disk drive assembly.
Next steps
1. Install the 2.5 in. hard-disk drive assembly.
2. Install the front bezel.
3. Install the side cover.
4. Follow the procedure in after working inside your computer.
Installing the 2.5 in. hard-disk drive assembly
Prerequisites
About this task
The following image indicates the location of the 2.5 in. hard-disk drive and provides a visual representation of the installation procedure.
