About this task

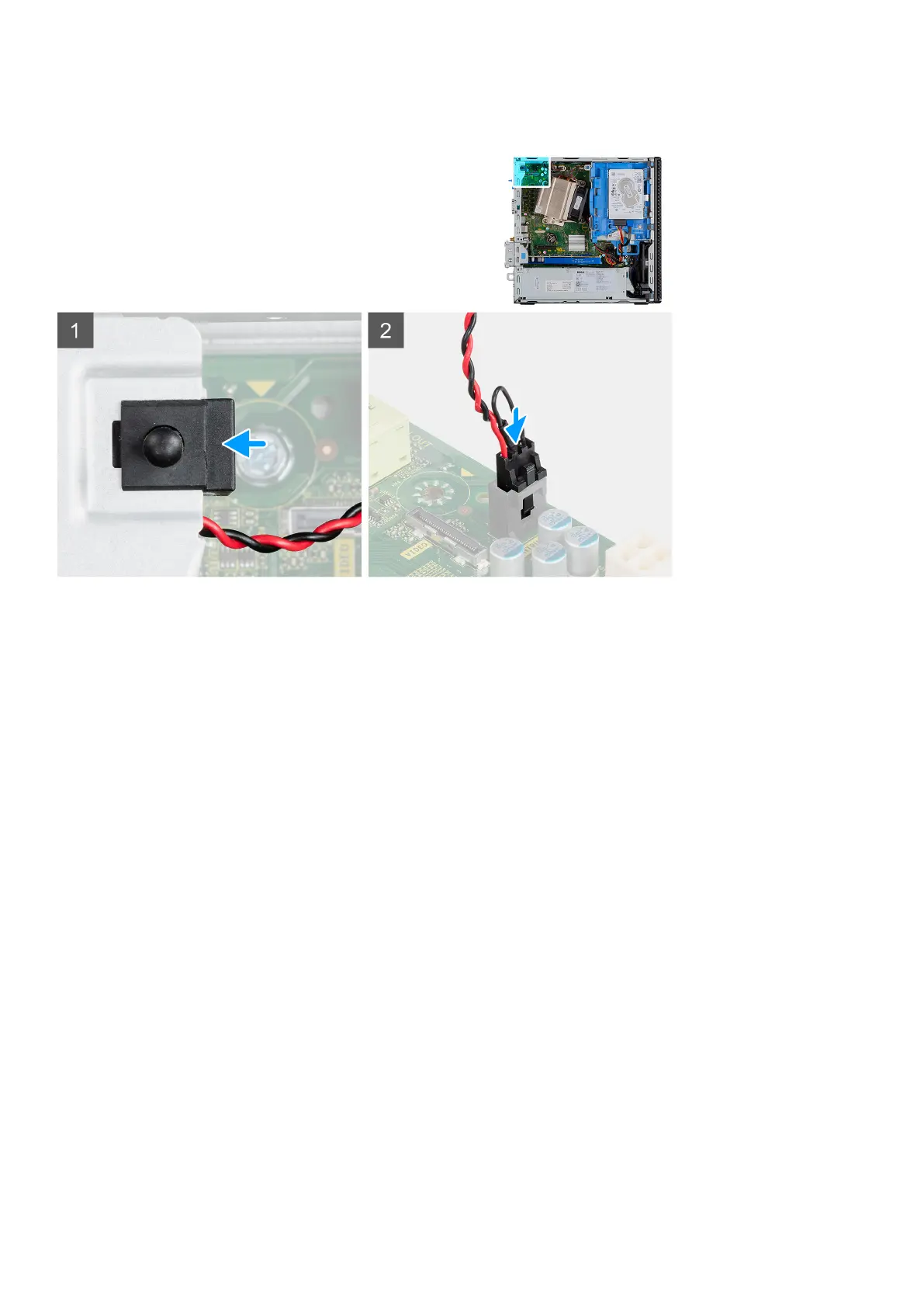

The following image indicates the location of the intrusion switch and provides a visual representation of the installation procedure.
Steps
1. Slide the intrusion switch into the slot on the chassis.
2. Connect the intrusion switch cable to the connector on the system board. .
Next steps
1. Install the Side cover
2. Follow the procedure in After working inside your computer.
Front bezel
Removing the front bezel
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the side cover.
About this task
The following images indicate the location of the front bezel and provide a visual representation of the removal procedure.
14
Disassembly and reassembly
