Steps
1. Disconnect the hard-disk drive data cable and power cable from the connectors on the hard-disk drive.
2. Push the release tab and slightly lift the hard-disk drive assembly.
3. Release the hard-disk drive assembly from the notch and slide the hard-disk drive assembly out.
NOTE: Note the orientation of the hard-disk drive so that you can replace it correctly.
Removing the hard-disk drive bracket
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the side cover.
3. Remove the front bezel.
4. Remove the 2.5 in. hard-disk drive assembly.
About this task

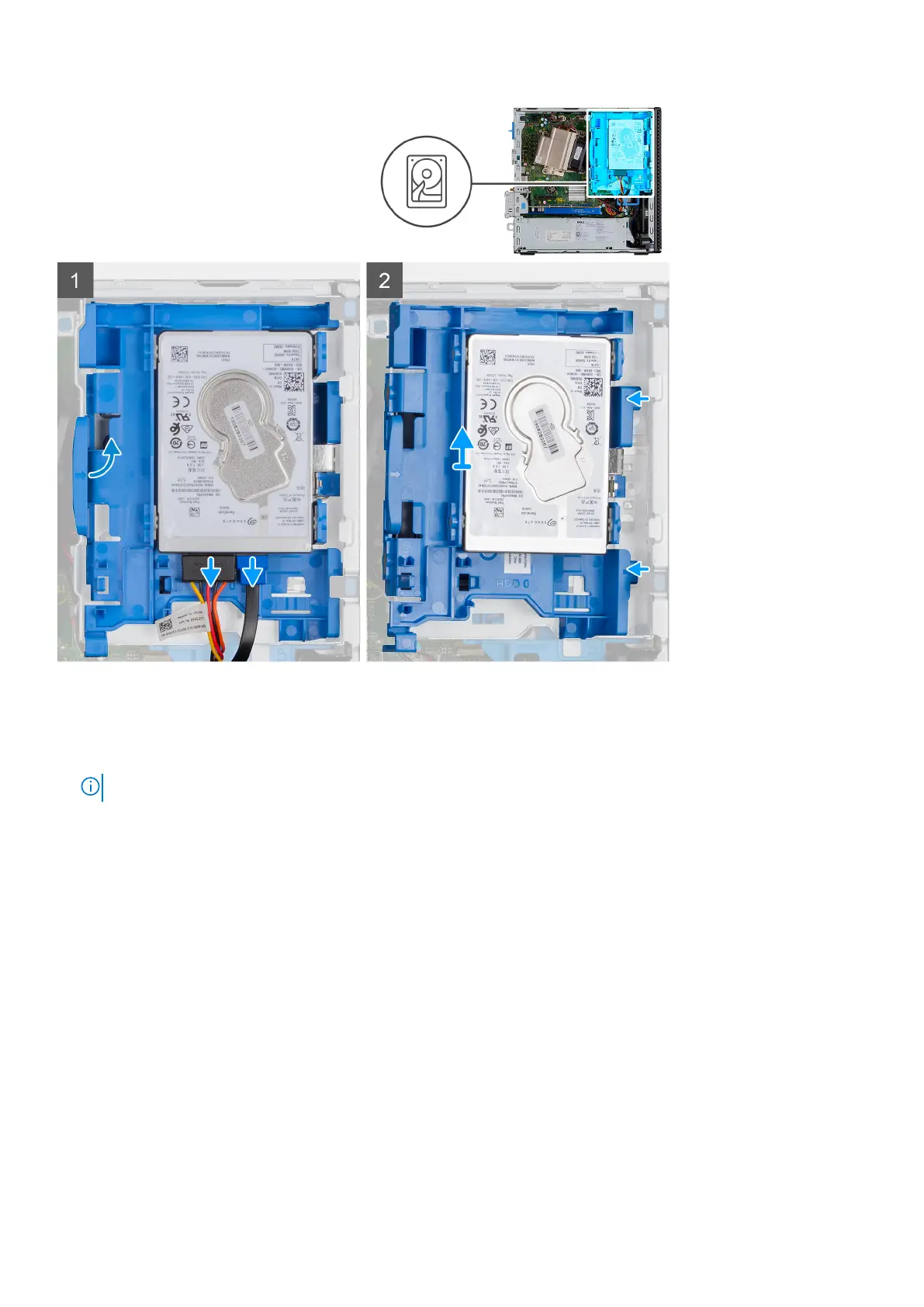

The following images indicate the location of the hard-disk drive bracket and provide a visual representation of the removal procedure.
Disassembly and reassembly
17
