Steps

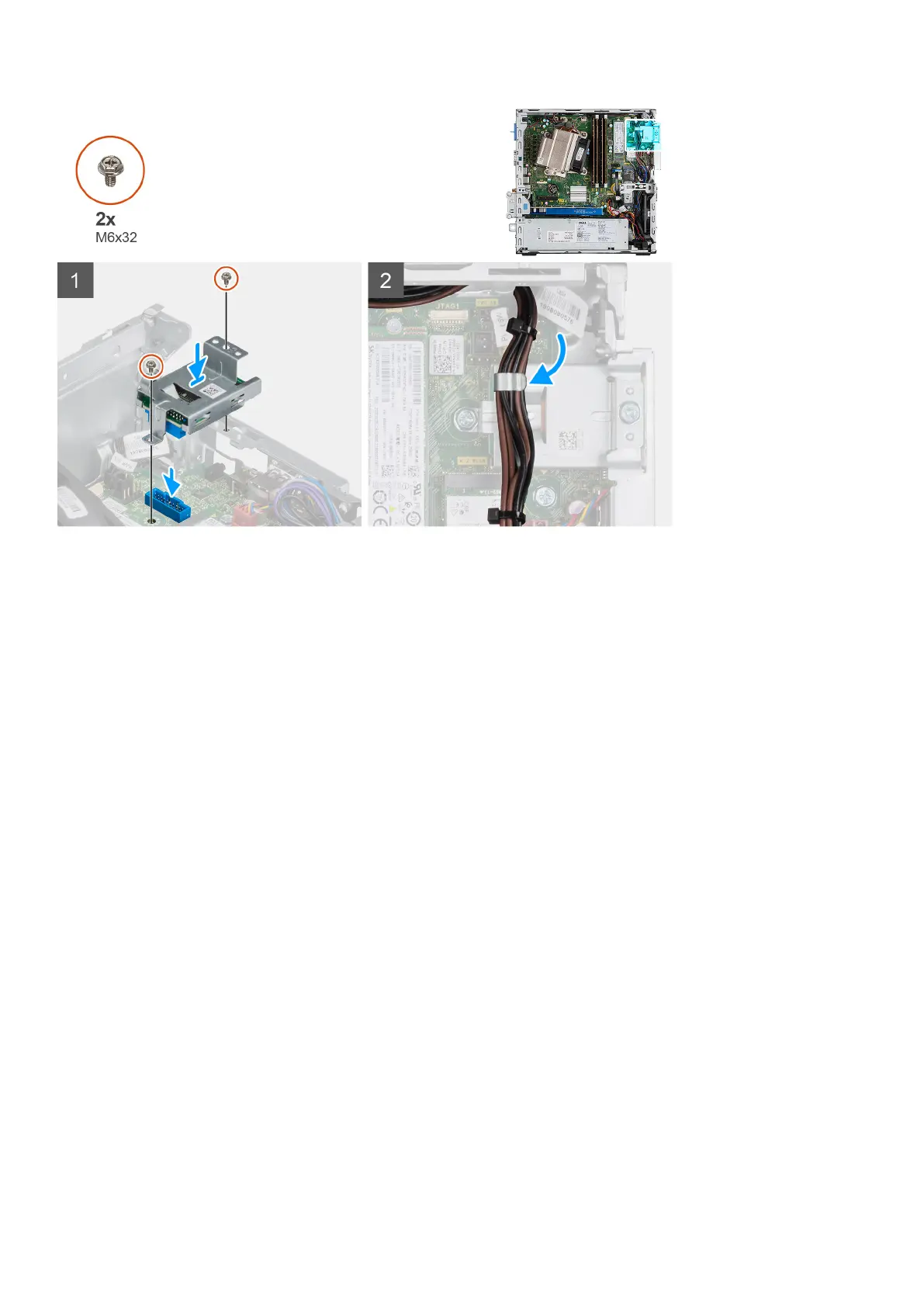

1. Align the SD card reader with the screw holes on the system board and replace the two screws (M6X32).
2. Route the power supply cables through the retention clip on the SD card reader.
Next steps
1. Install the Side cover
2. Follow the procedure in After working inside your computer.
Expansion card
Removing the expansion card
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the Side cover
About this task
The following images indicate the location of the expansion card and provide a visual representation of the removal procedure.
34
Disassembly and reassembly
