Steps
1. Place the side cover on your computer.
2. Slide the side cover towards the front of the system till you hear the release latch click.
Next steps
1. Follow the procedure in after working inside your computer.
Intrusion switch
Removing the intrusion switch
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the Side cover
About this task

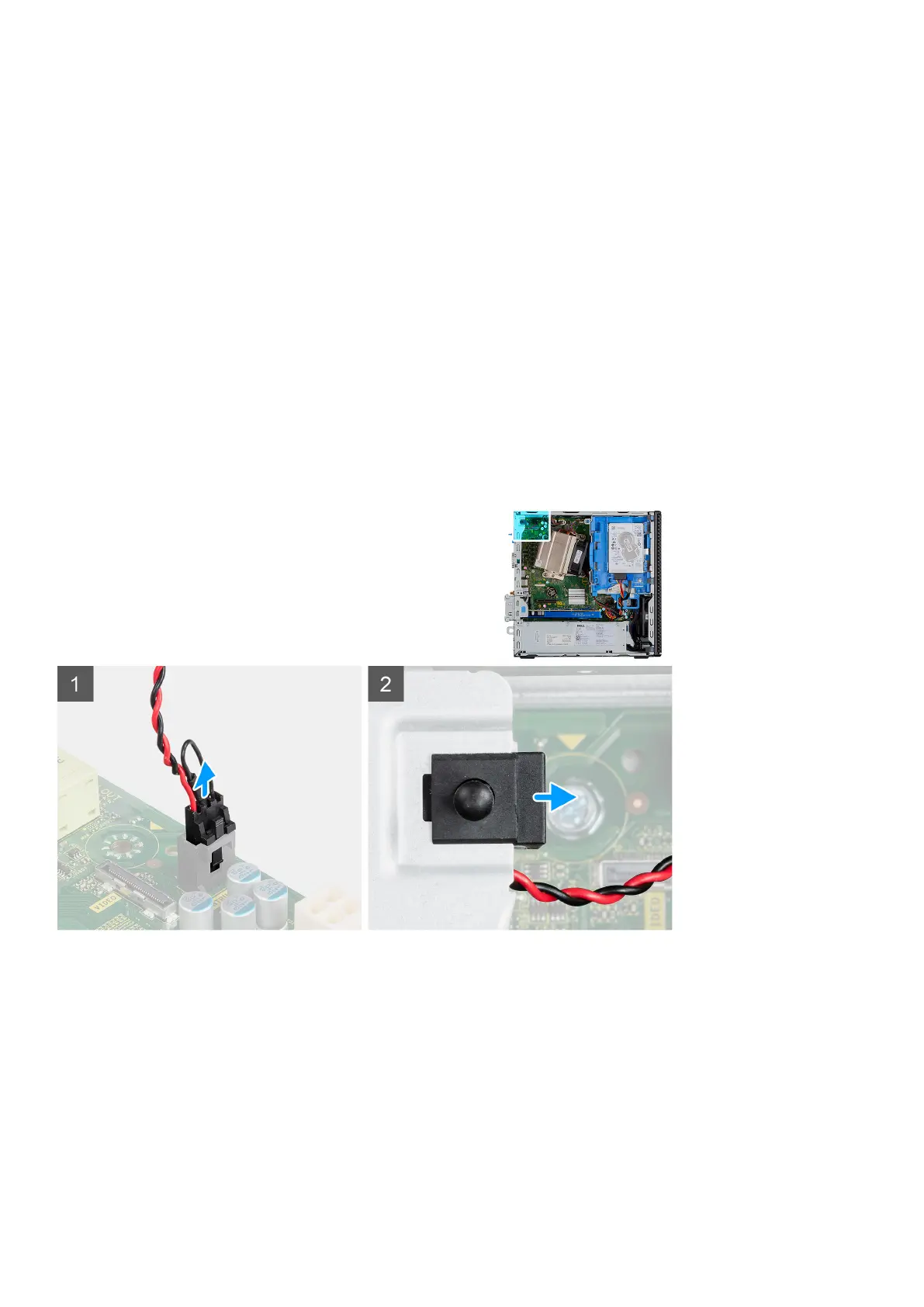

The following images indicate the location of the intrusion switch and provide a visual representation of the removal procedure.
Steps
1. Disconnect the intrusion switch cable from the connector on the system board.
2. Slide the intrusion switch from the system .
Installing the intrusion switch
Prerequisites
Disassembly and reassembly
13
