System board
Removing the system board
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the side cover.
3. Remove the front bezel.
4. Remove the hard drive assembly.
5. Remove the solid-state drive.
6. Remove the WLAN card.
7. Remove the heat-sink.
8. Remove the memory modules.
9. Remove the processor.
About this task

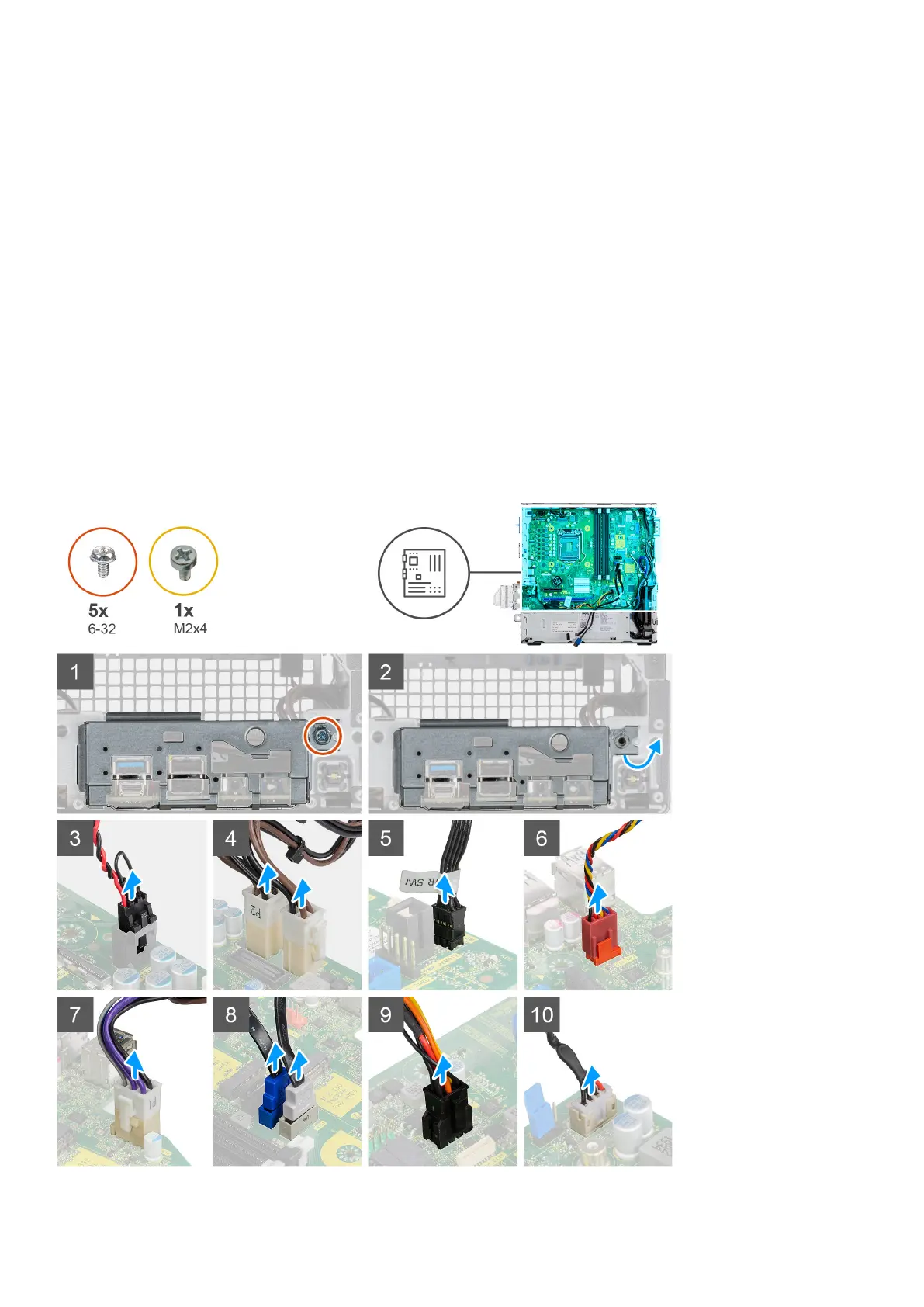

The following images indicate the location of the system board and provide a visual representation of the removal procedure.
Disassembly and reassembly 51
