Steps

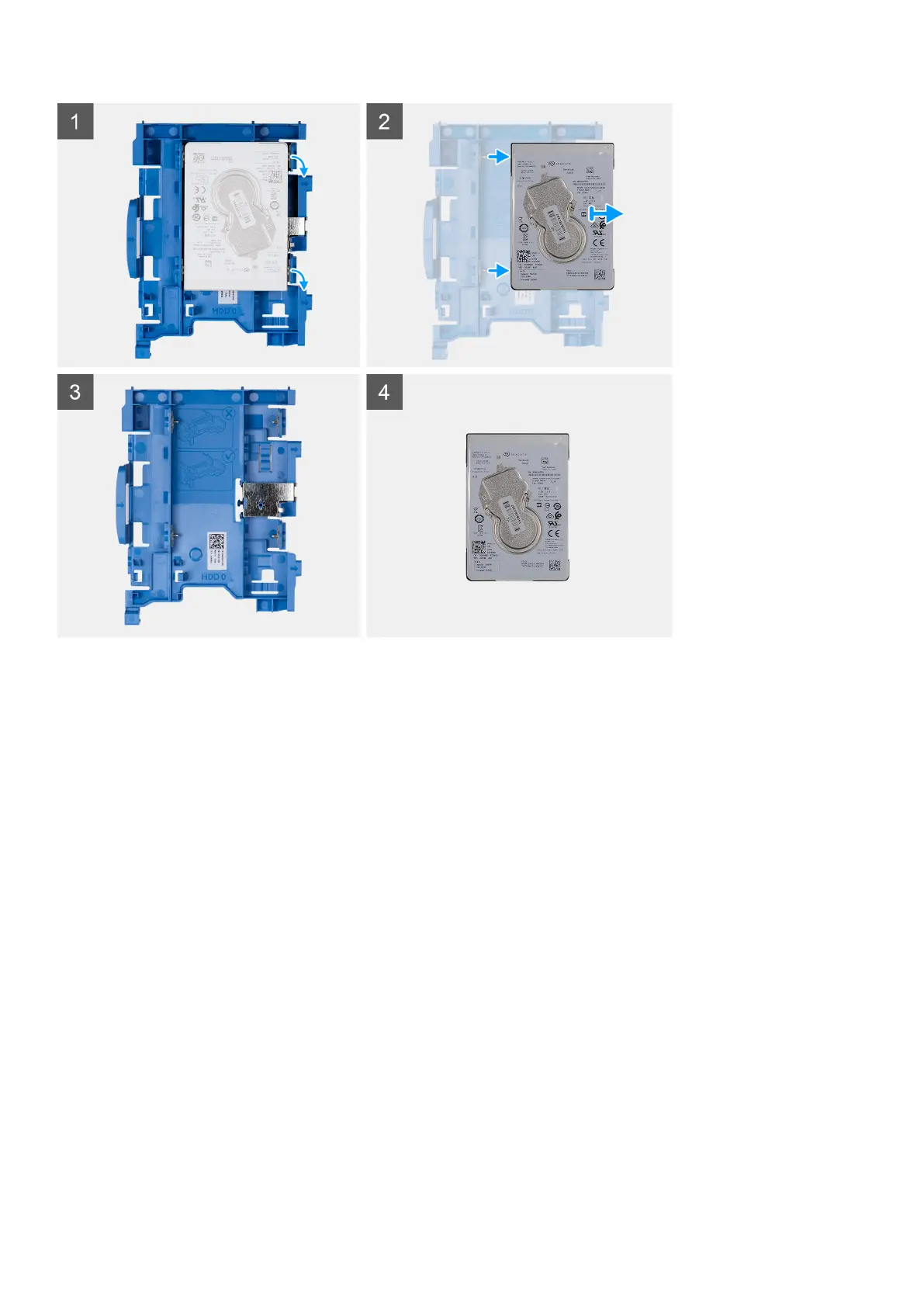

1. Pull one side of the hard-disk drive bracket to disengage the pins on the bracket from the slots on the drive and lift the hard-disk drive.
2. Hard-disk drive bracket for the 2.5 in. hard-disk drive.
3. 2.5 in. hard-disk drive.
Installing the hard-disk drive bracket
Prerequisites
About this task
The following image indicates the location of the hard-disk drive bracket and provides a visual representation of the installation procedure.
18
Disassembly and reassembly
