SD card reader - optional
Removing the SD card reader
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the Side cover
About this task

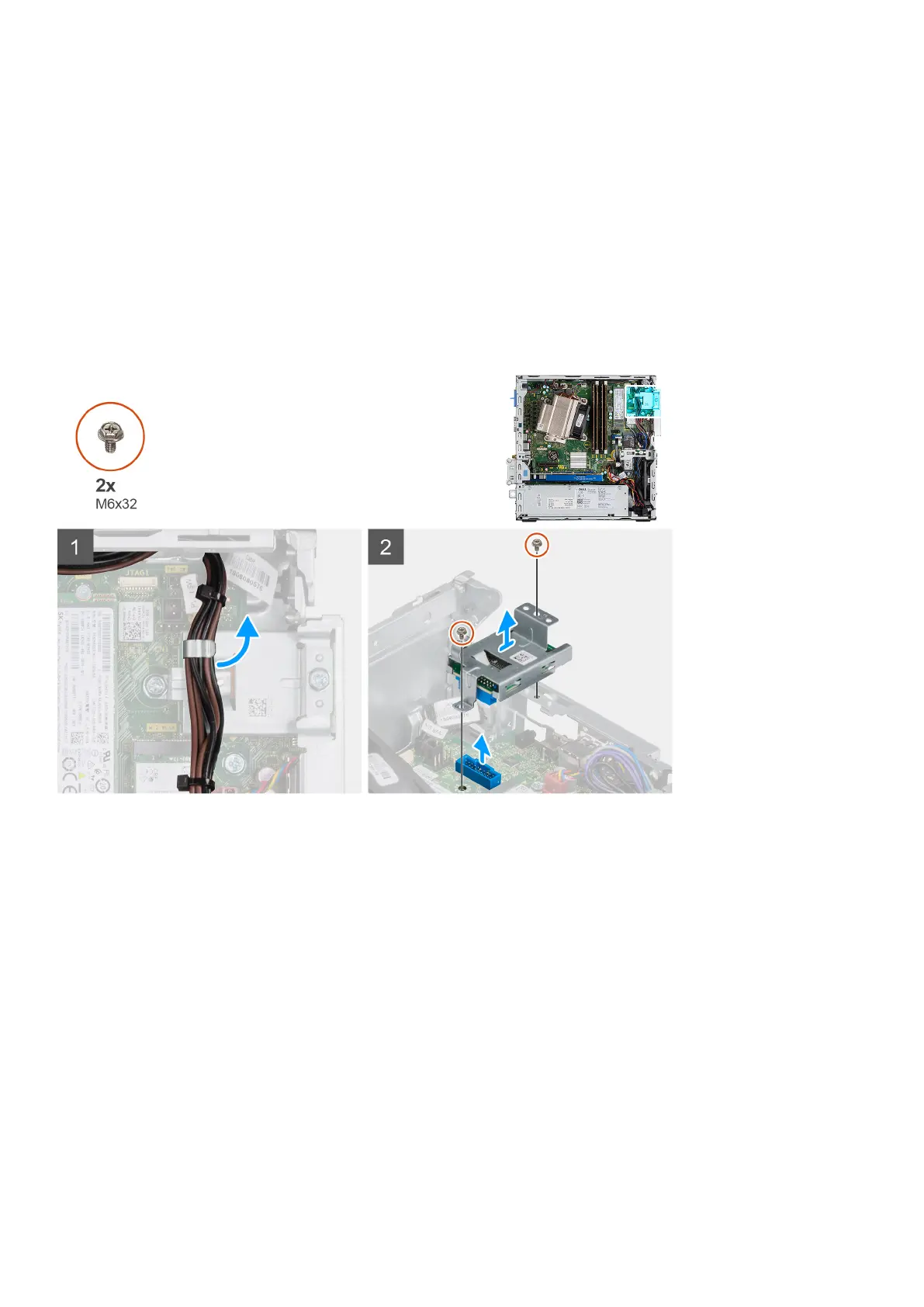

The following images indicate the location of the graphics card and provide a visual representation of the removal procedure.
Steps
1. Unroute the power supply cables from the retention clip on the SD card reader.
2. Remove the two screws (M6X32) and lift the SD card reader from the chassis.
Installing the SD card reader
Prerequisites
About this task
The following image indicates the location of the SD card reader and provides a visual representation of the installation procedure.
Disassembly and reassembly
33
To Next Page
