Steps

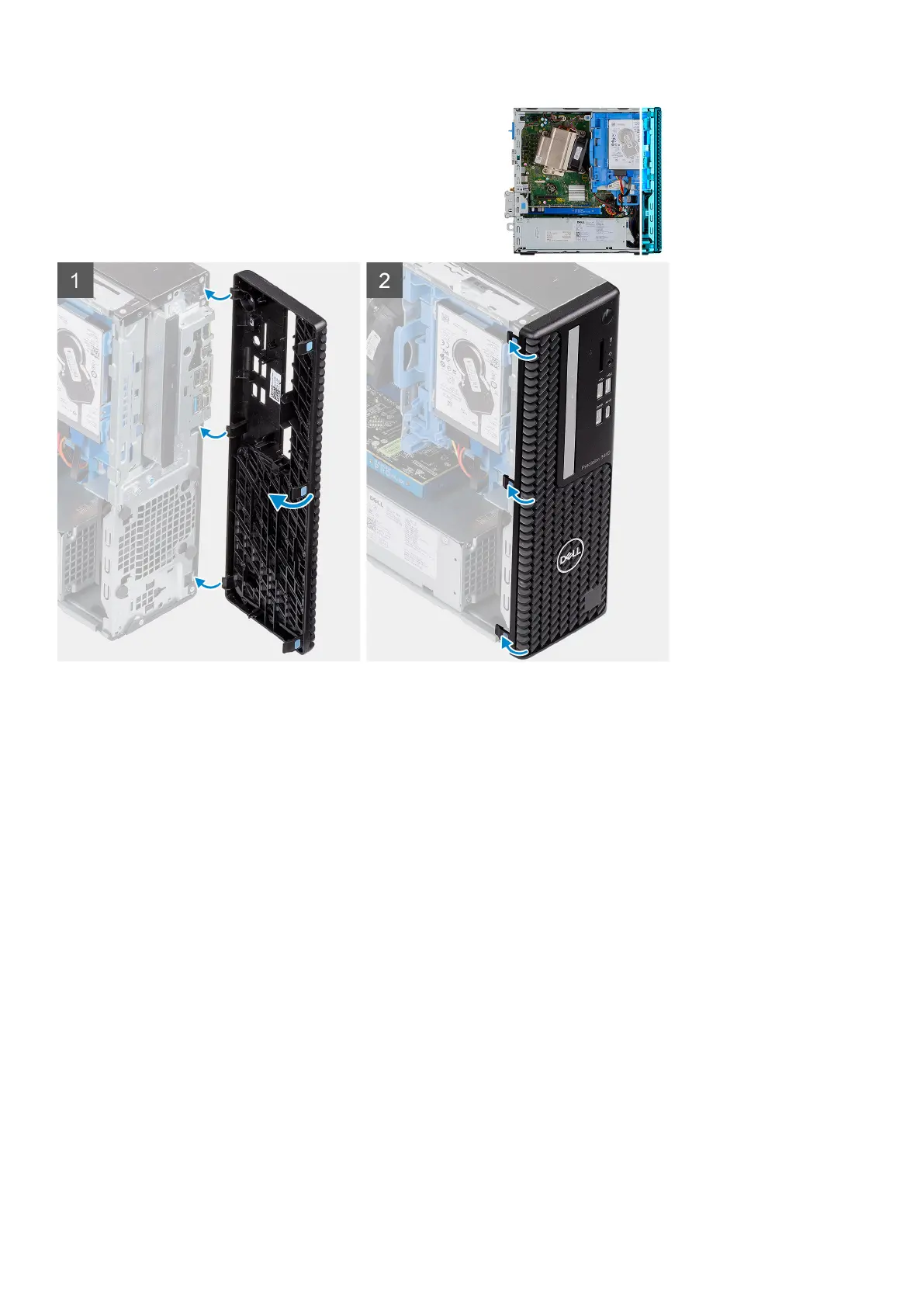

1. Align the bezel and insert the retention tabs on the bezel into the slots on the system.
2. Press the bezel until the retention tabs click into place.
Next steps
1. Install the side cover.
2. Follow the procedure in after working inside your computer.
Hard-drive assembly
Removing the 2.5 in. hard-disk drive assembly
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the side cover.
3. Remove the front bezel.
About this task
The following images indicate the location of the 2.5 in. hard-disk drive assembly and provide a visual representation of the removal
procedure.
16
Disassembly and reassembly
