Steps
1. Remove the hard-disk drive power cable and the SATA cable through the recess in the release latch.
2. Unroute the optical-disk drive cable and the hard-disk drive cable from the retention clip on the hard-disk drive and optical-disk drive
module.
3. Slide the release latch to unlock the hard-disk drive and optical-disk drive module.
4. Holding the release latch lift the hard-disk drive and optical-disk drive module.
5. Lift the hard-disk drive and optical-disk drive module and slide it out of the slot.
6. Flip the hard-disk drive and optical-disk drive module to disconnect the optical-disk drive data and power cables.
Installing the hard-disk drive and optical-disk drive module
Prerequisites
About this task

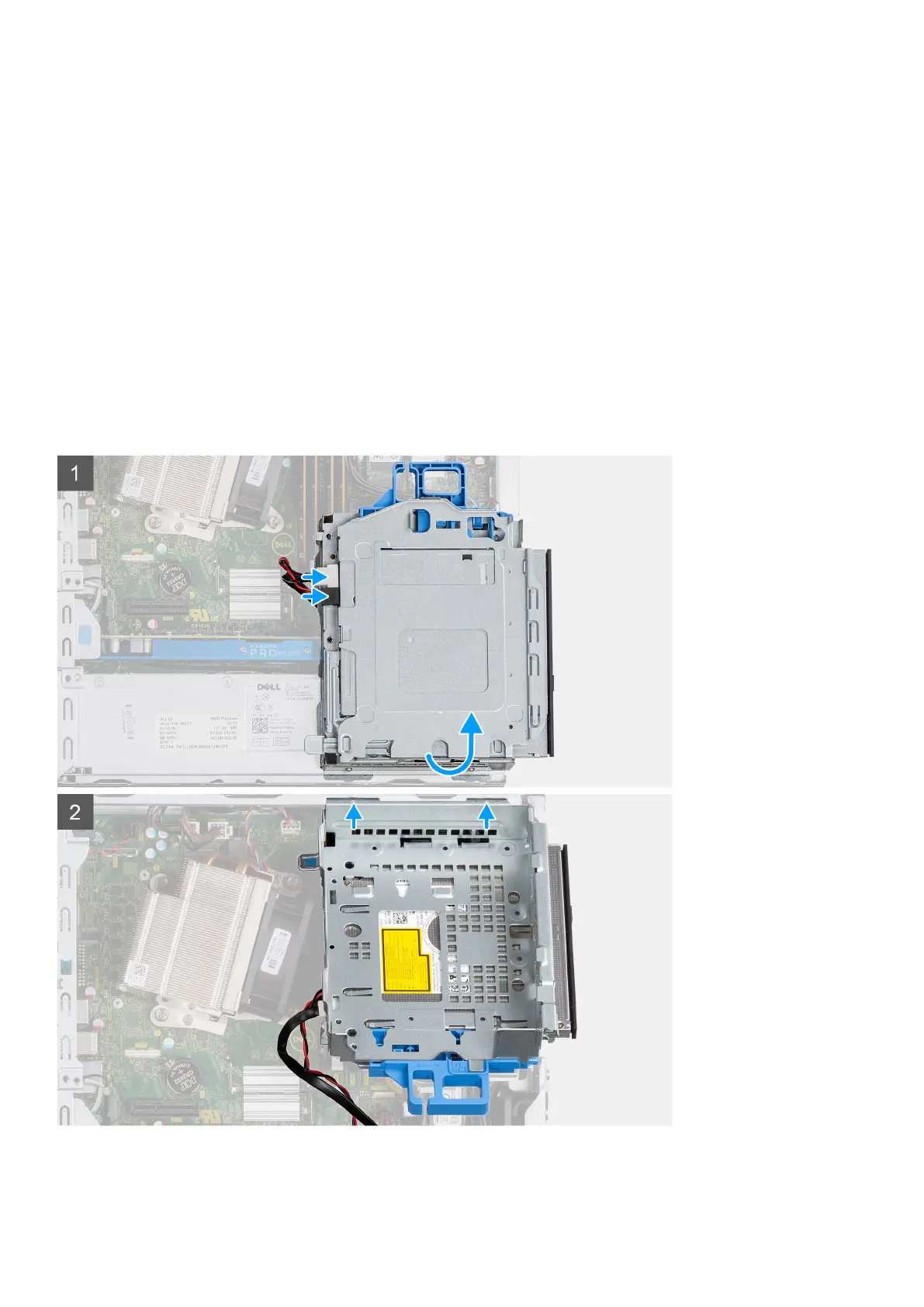

The following image indicates the location of the hard-disk drive and optical-disk drive module and provides a visual representation of the
installation procedure.
Disassembly and reassembly 23
