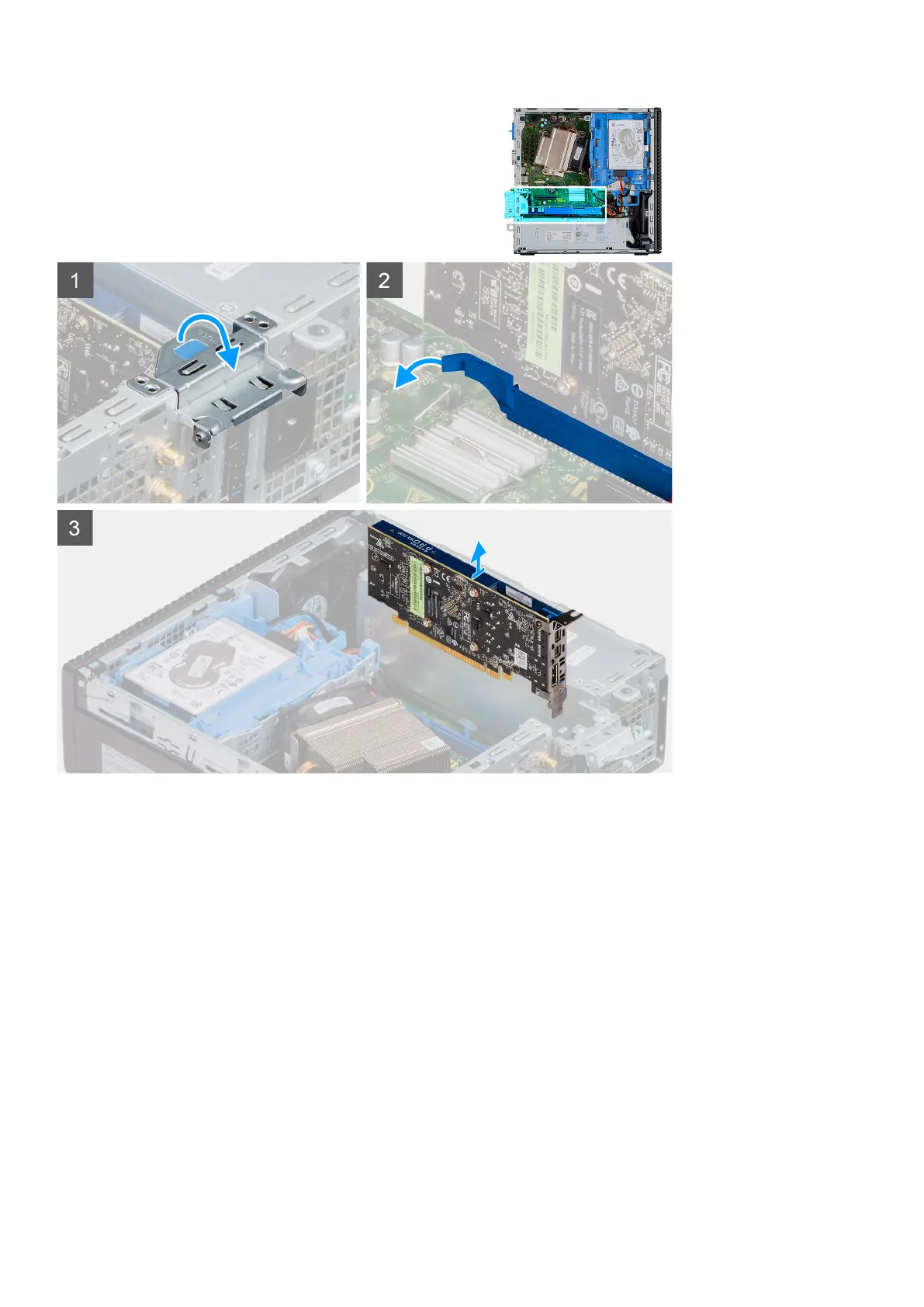

Steps
1. Pull the metal tab to open the expansion card latch.
2. Pull the release tab at the base of the expansion card.
3. Lift the expansion card away from the connector on the system board.
Installing the expansion card
Prerequisites
About this task
The following image indicates the location of the expansion card and provides a visual representation of the installation procedure.
Disassembly and reassembly
35
