Solid-state drive
Removing the M.2 2230 PCIe solid-state drive
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the side cover.
3. Remove the front bezel.
4. Remove the 2.5 in. hard drive assembly.
About this task

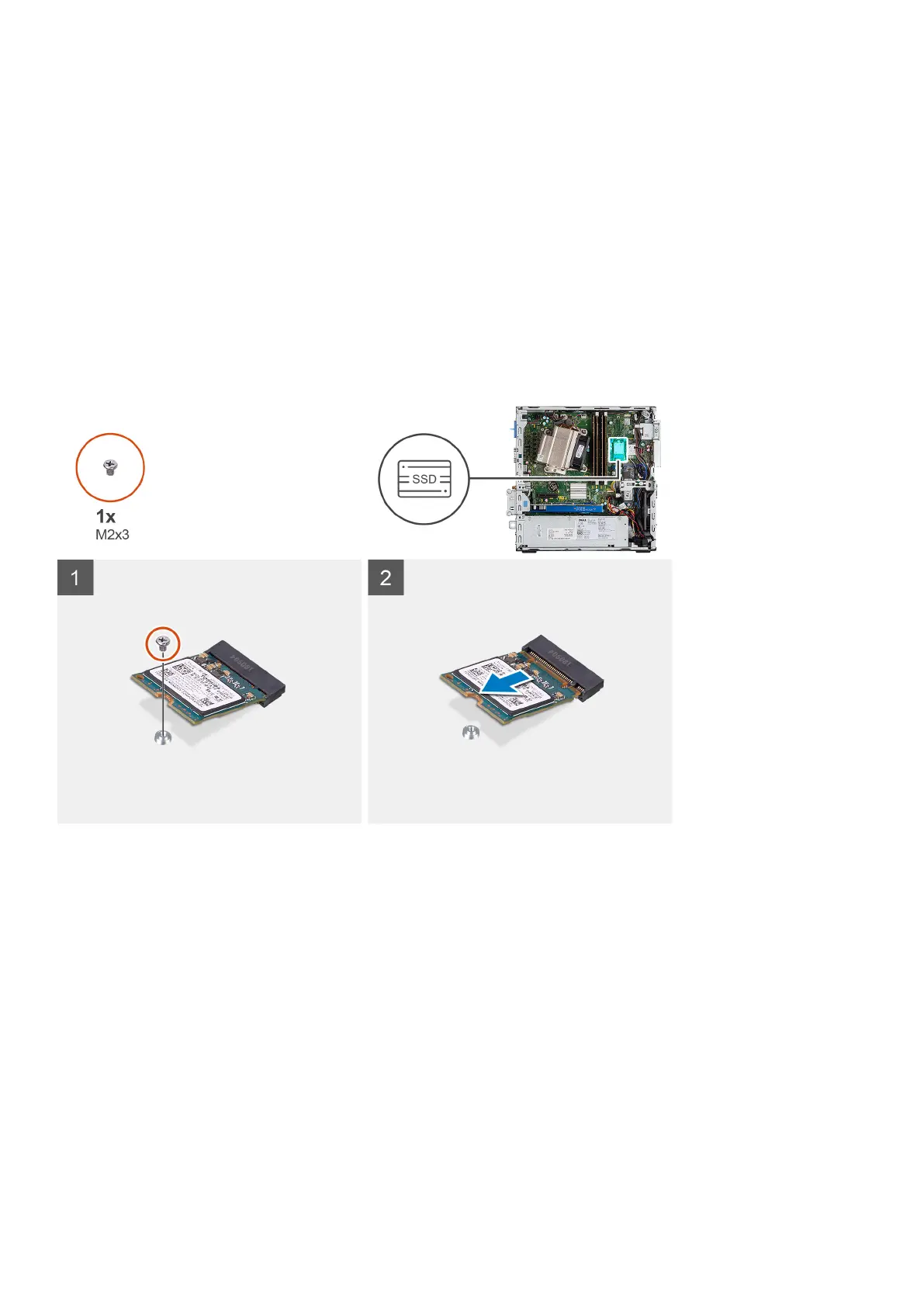

The following images indicate the location of the solid-state drive and provide a visual representation of the removal procedure.
Steps
1. Remove the screw (M2x3) that secures the solid-state drive to the system board.
2. Slide and lift the solid-state drive off the system board.
Installing the M.2 2230 PCIe solid-state drive
Prerequisites
About this task
The following image indicates the location of the solid-state drive and provides a visual representation of the installation procedure.
Disassembly and reassembly
27
