Power Supply
Removing the Power Supply
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove the front bezel.
3. Remove the cover.
4. Remove the cooling shroud.
5. Remove the optical drive.
6. Remove the hard drive carrier.
7. Remove the hard-drive assembly.
8. Remove the SAS Backplane.

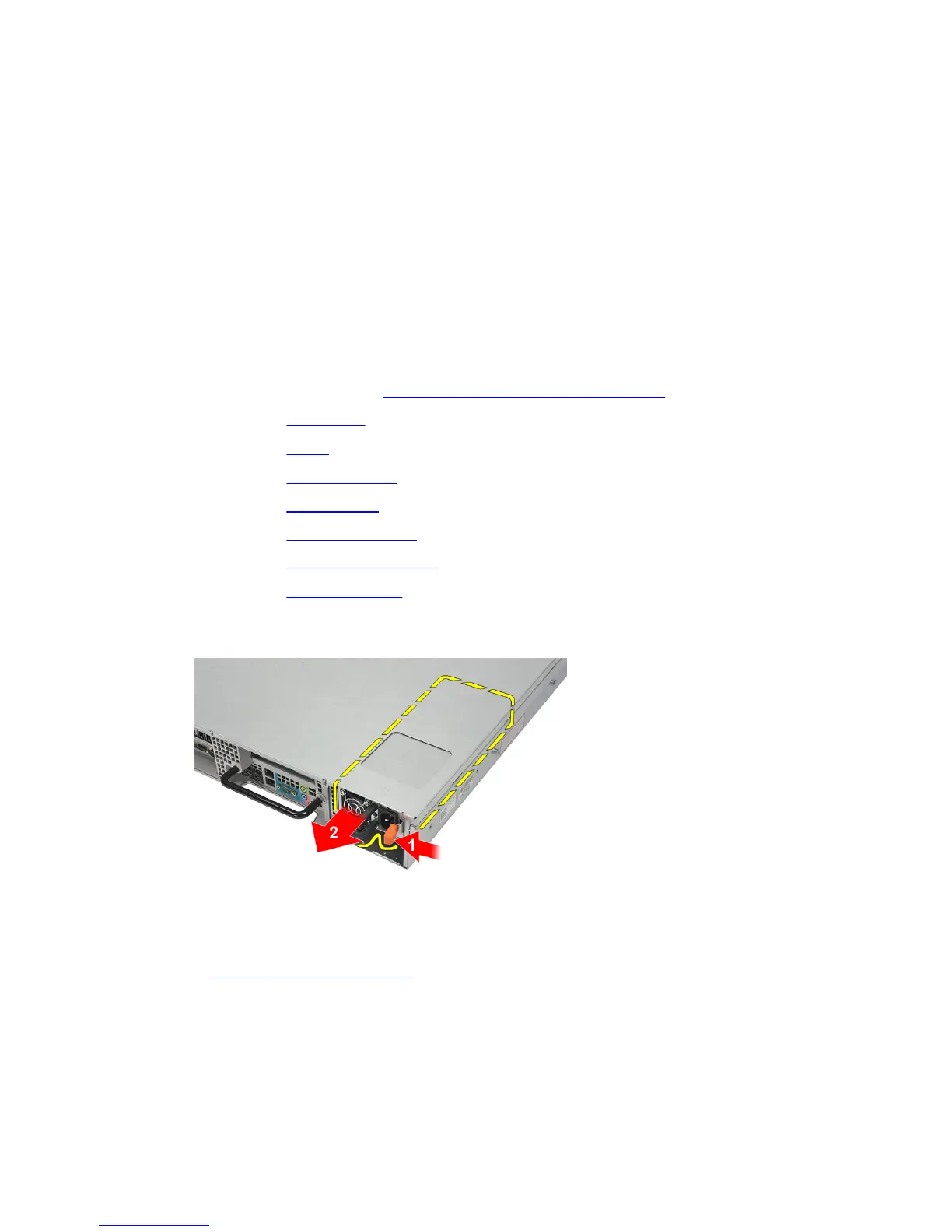

9. Press and hold the orange tab towards latch. Then pull the power supply unit away
from the computer.
Related Links
Installing the Power Supply
