16. Lift the center riser board up and away from the computer.
Related Links
Installing the Center Riser Board
Installing the Center Riser Board

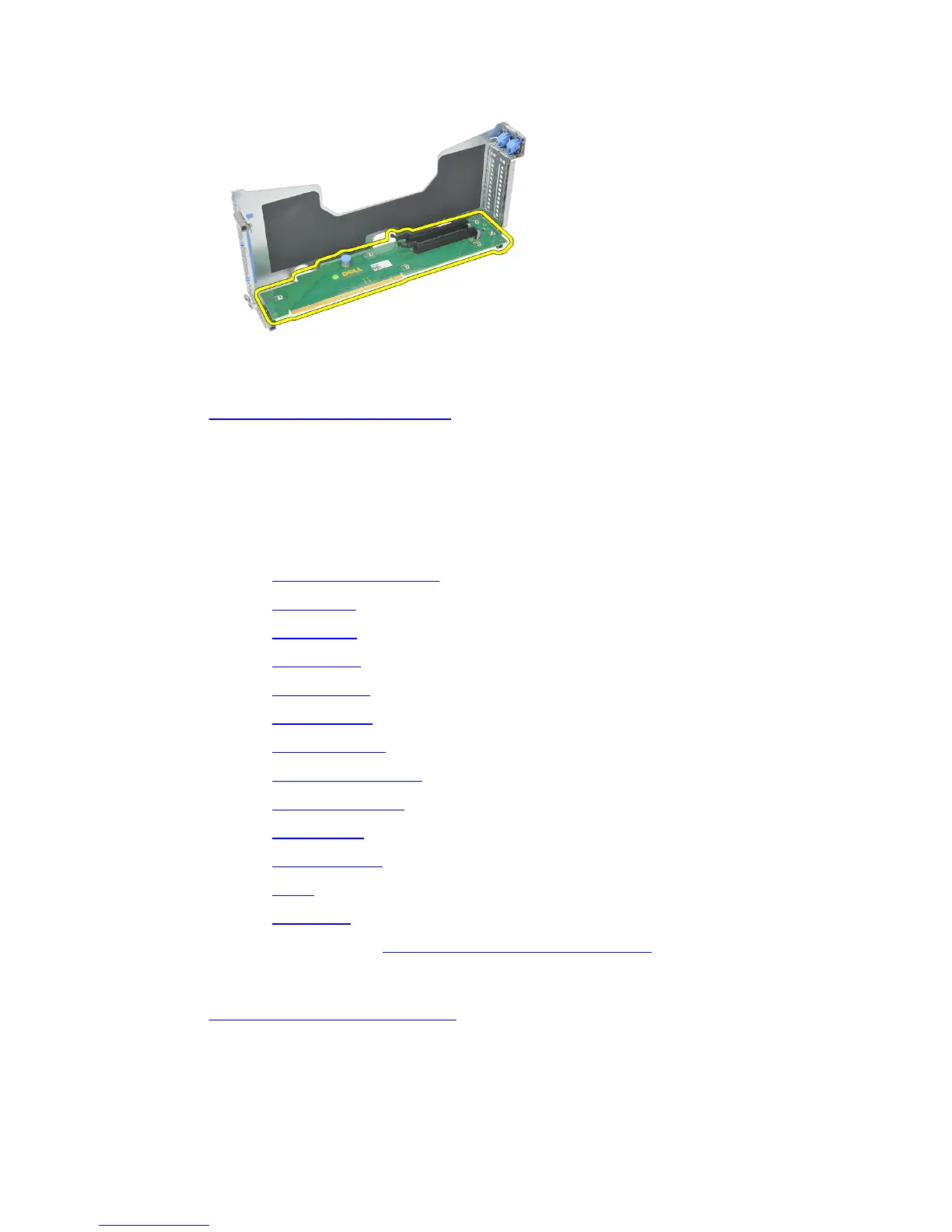

1. Place the center riser board on the computer.
2. Slide the center riser board into place and press the release tab downwards.
3. Install the power distribution unit.
4. Install the card cages.
5. Install the fan bracket.
6. Install the system fans.
7. Install the control panel.
8. Install the power supply.
9. Install the SAS backplane.
10. Install the hard drive assembly.
11. Install the hard-drive carrier.
12. Install the optical drive.
13. Install the cooling shroud.
14. Install the cover.
15. Install the front bezel.
16. Follow the procedures in After Working Inside Your Computer.
