Installing the Power Distribution Unit
Installing the Power Distribution Unit
1. Place the power distribution unit on the computer.
2. Fix the screws securing the power distribution unit.

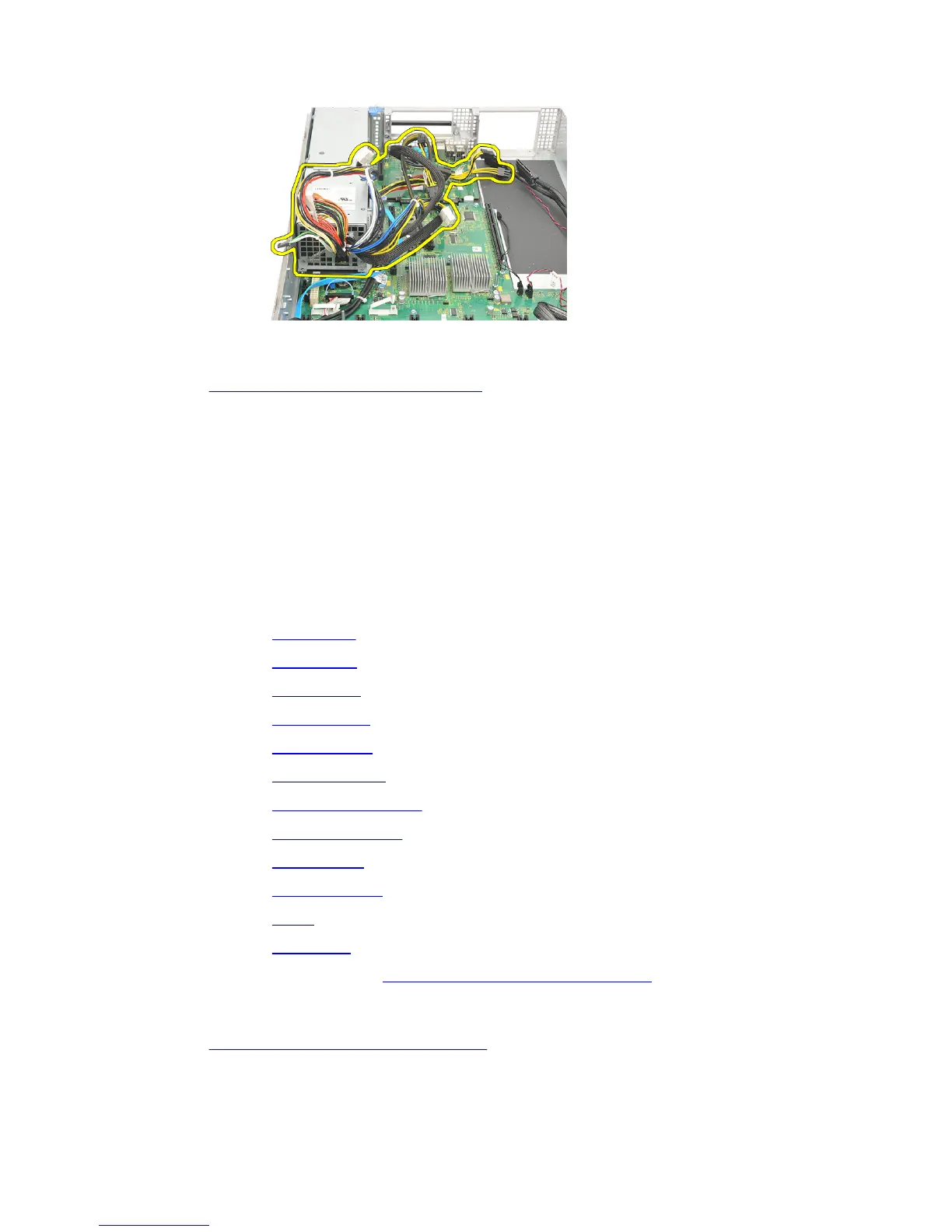

3. Route and place the CPU 1, CPU 2, SAS Backplane and optical driver power cables.
4. Connect CPU 1, CPU 2, SAS Backplane and optical driver power connectors.
5. Attach the cables leading to the power distribution unit.
6. Install the card cages.
7. Install the fan bracket.
8. Install the system fans.
9. Install the control panel.
10. Install the power supply.
11. Install the SAS backplane.
12. Install the hard drive assembly.
13. Install the hard drive carrier.
14. Install the optical drive.
15. Install the cooling shroud.
16. Install the cover.
17. Install the front bezel.
18. Follow the procedures in After Working Inside Your Computer.
