18

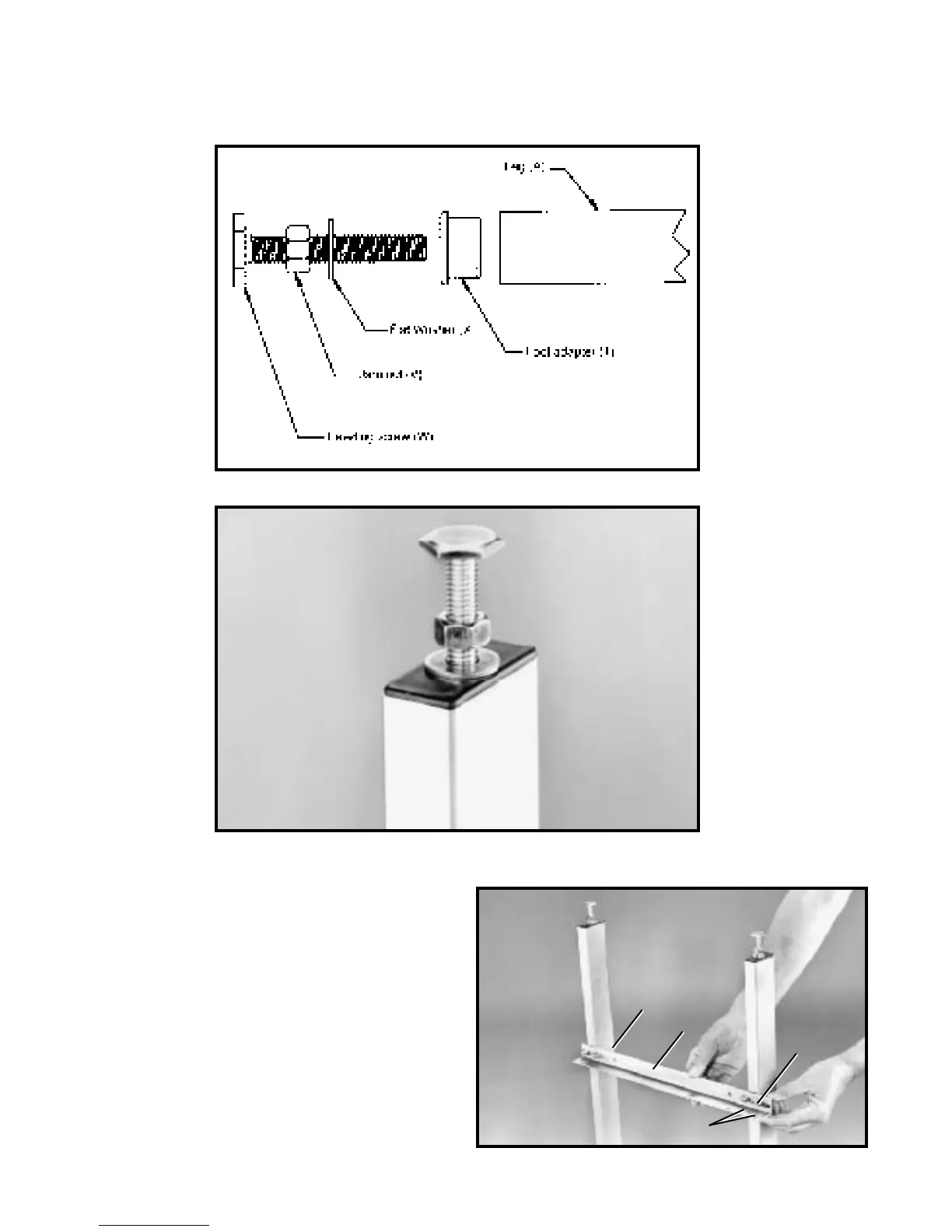

4. Insert foot adapter (T) Fig. 48, into the bottom of each leg (A). Assemble the 3/8† jam nut (V)
Fig. 48, approximately 3/4 of the way onto leveling screw (W) and place a flat washer (X) on the level -
ing screw. Thread the leveling screw (W) Fig. 48, into foot adapter. Fig. 49, illustrates the foot leveling
assembly on the table leg. Assemble the remaining foot assembly to the other t able leg in the same
manner. NOTE: Height adjustments can be made later.
Fig. 50
5. Assemble shelf support bracket (M) Fig. 50, to the
table legs (A) using two U-clamps (N), flat washers, and
hex nuts (P). NOTE: Height adjustments to the bracket
can be made later.
Fig. 49
Fig. 48
N
M
P
N
