ASSEMBLING UNIFENCE
TABLE TO SAW

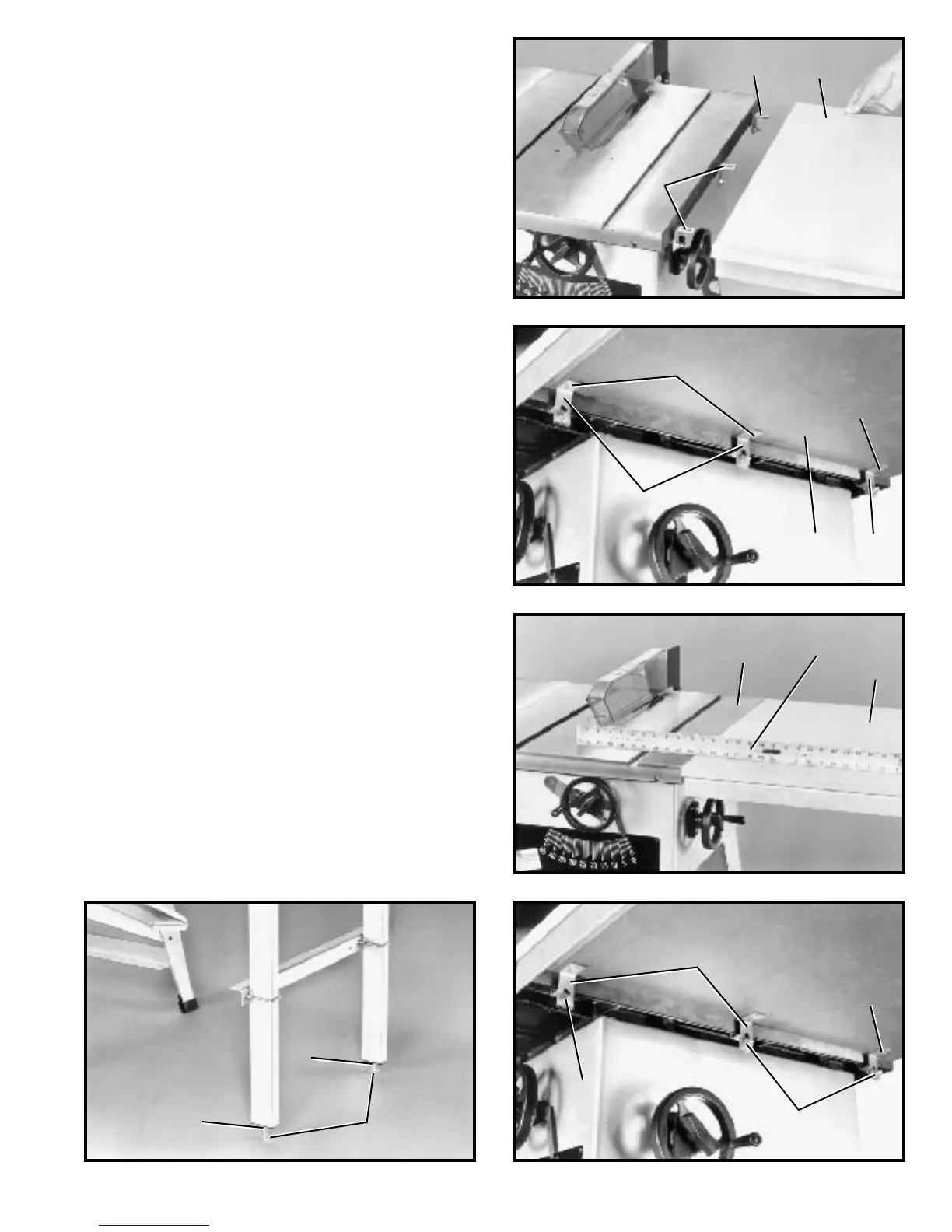

1. Position t able board (A) Fig. 51, onto angle brackets
(B).
2. While holding t able board firmly against the saw
table, fasten t able to three angle brackets (B) Fig. 52,
using three #8 x 7/8 † long wood screws (C). CAUTION:
DO NOT OVER-TIGHTEN TABLEMOUNTING SCREWS.
Over-tightening screws in particle board may cause them
to strip.
3. Using a straight edge (D) Fig. 53, make cert ain the
surface of the Unifence t able (A) is level with the saw
table (F) by adjusting the height of the two leveling
screws (E) Fig. 54, at the base of the t able legs and
adjusting the height of angle brackets (B) Fig. 55. Once
the Unifence t able is level with the saw t able, tighten
three hex nuts (G) Fig. 55, and position hex nut s (H)
Fig. 54, against the bottom of the t able legs to hold the
leveling screws in position.
