Delta 36-475 - Assembling Unifence Body to Guide Rail

22
Fig. 66
Fig. 67
Fig. 68
Fig. 65
ASSEMBLING UNIFENCE
BODYTO GUIDE RAIL

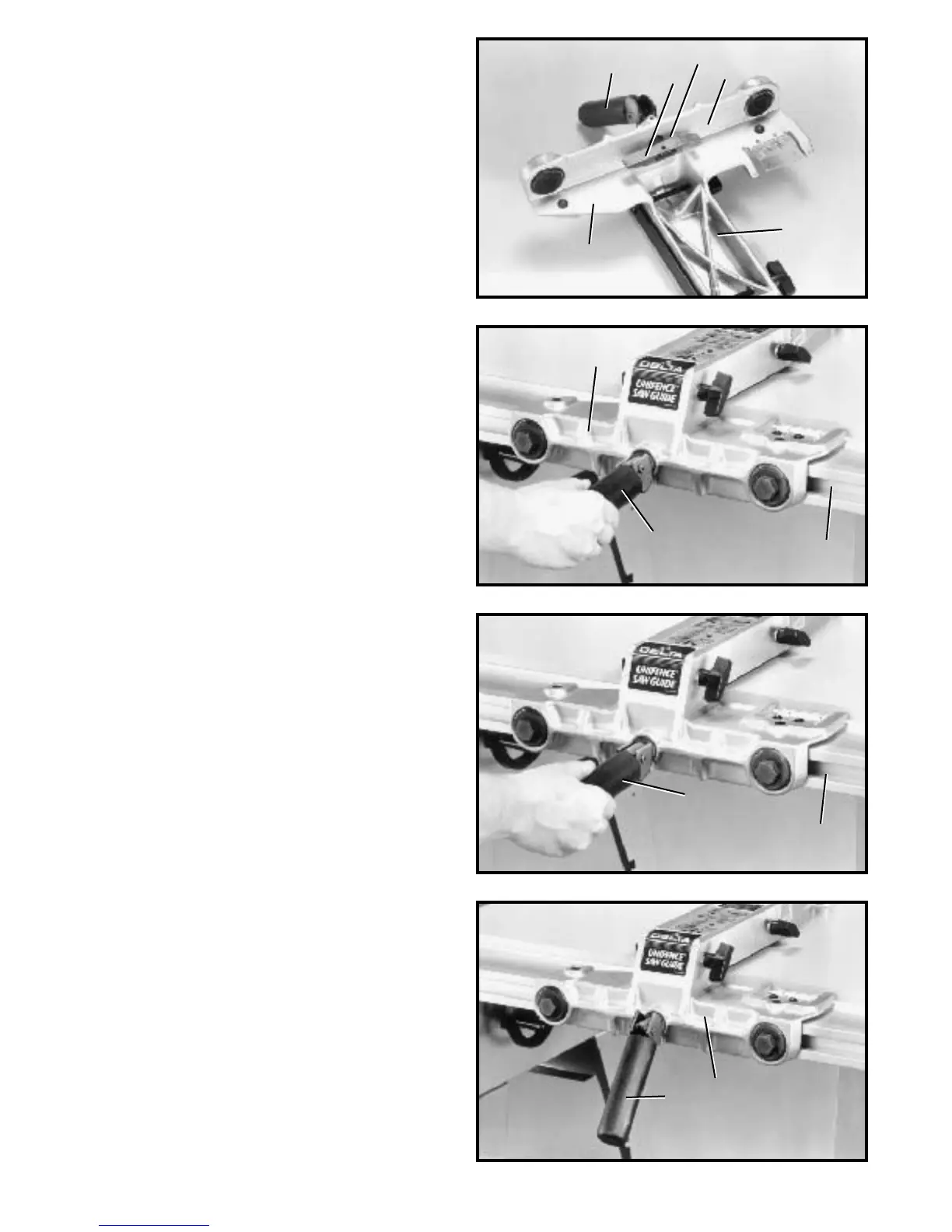

1. Turn fence body (A) Fig. 65, up side down and lay it
on a table or bench. Push handle (B) in against fence
body. Make cert ain the surface (C) of clamp bracket is
parallel to the face (D) of the fence body, and that the
inside edge (E) of the clamp bracket is parallel to surface
(F) of the fence body. Turn handle (B) Fig. 65, if neces -
sary.
2. Place fence body (A) Fig. 66, onto the guide rail as
shown, making sure clamp bracket is inserted into chan-
nel (G) on rail. Notice that the clamp handle (B) is turned
to the lef t indent position.
3. Turn handle (B) Fig. 67, to the right indent position
as shown. This will prevent fence clamp from sliding out
of the channel (G).
4. Lock fence body (A) to the guide rail by pushing
down on handle (B) as shown in Fig. 68.
C
E
F
B
D
A
A
B
G
G
B
B
A
