ASSEMBLING TABLE LEGS AND FRONT TABLE SUPPORT
Fig.45
Fig. 46
Fig. 47

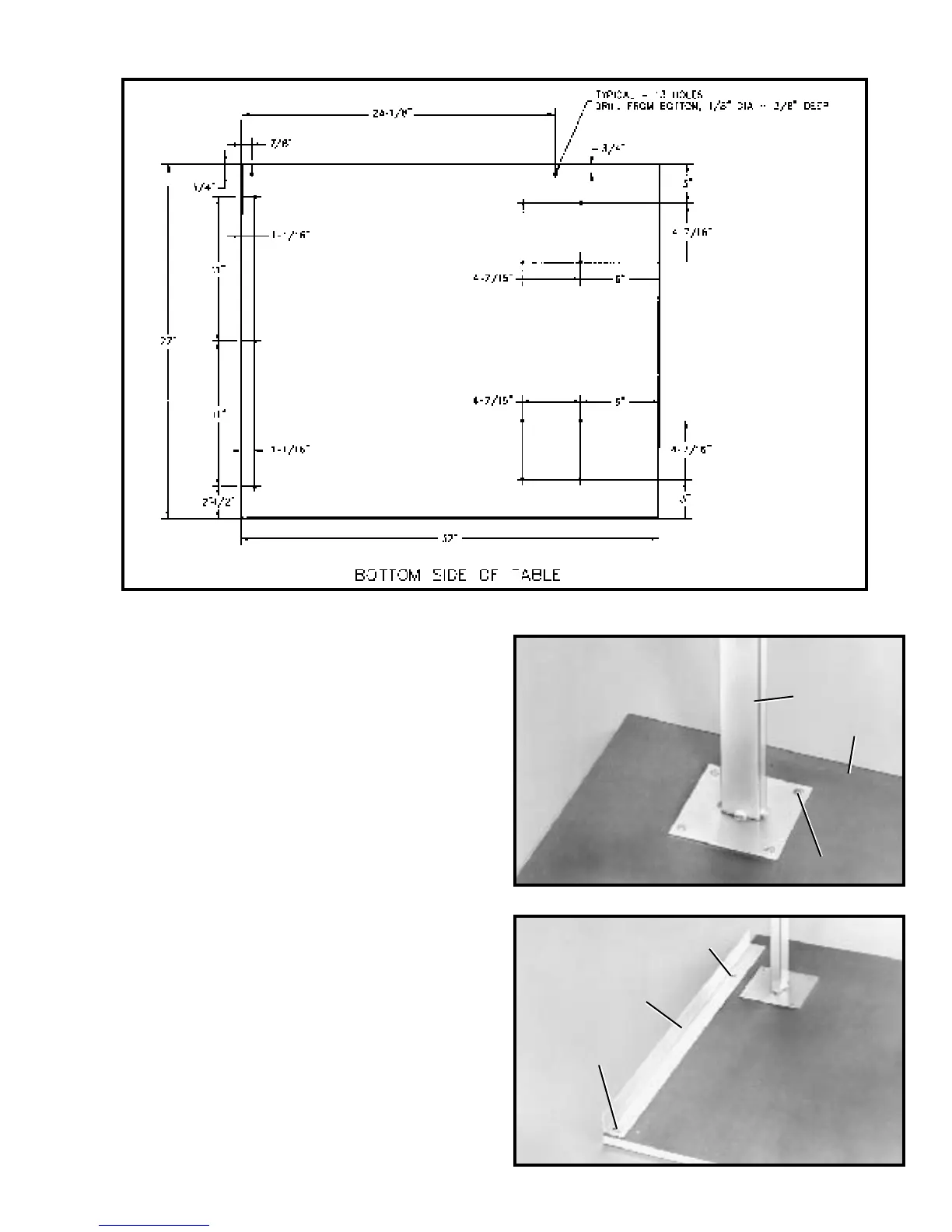

1. The table board supplied will require thirteen 1/8 †
diameter x 3/8 † deep holes to be drilled in the bottom of
the t able board at the locations illustrated in Fig. 45.
2. Assemble table leg (A) Fig. 46, to t able board (B) using
four #8 x 7/8 † long wood screws (C) as shown. Assemble
remaining table leg to the t able in the same manner.
CAUTION: D O NOT OVER-TIGHTEN LEG MOUNTING
SCREWS. Over-tightening screws in particle board may
cause them to strip.
3. Fasten front t able support (D) Fig. 47, to the bottom
of table using two 7/8 † long wood screws (E) as shown.
CAUTION: D O NOT OVER-TIGHTEN SCREWS (E).
Over-tightening screws in particle board may cause them
to strip. Do not completely tighten the two screws (E) at
this time, as adjustment is necessary.
