ASSEMBLING
UNIFENCE GUIDE RAIL

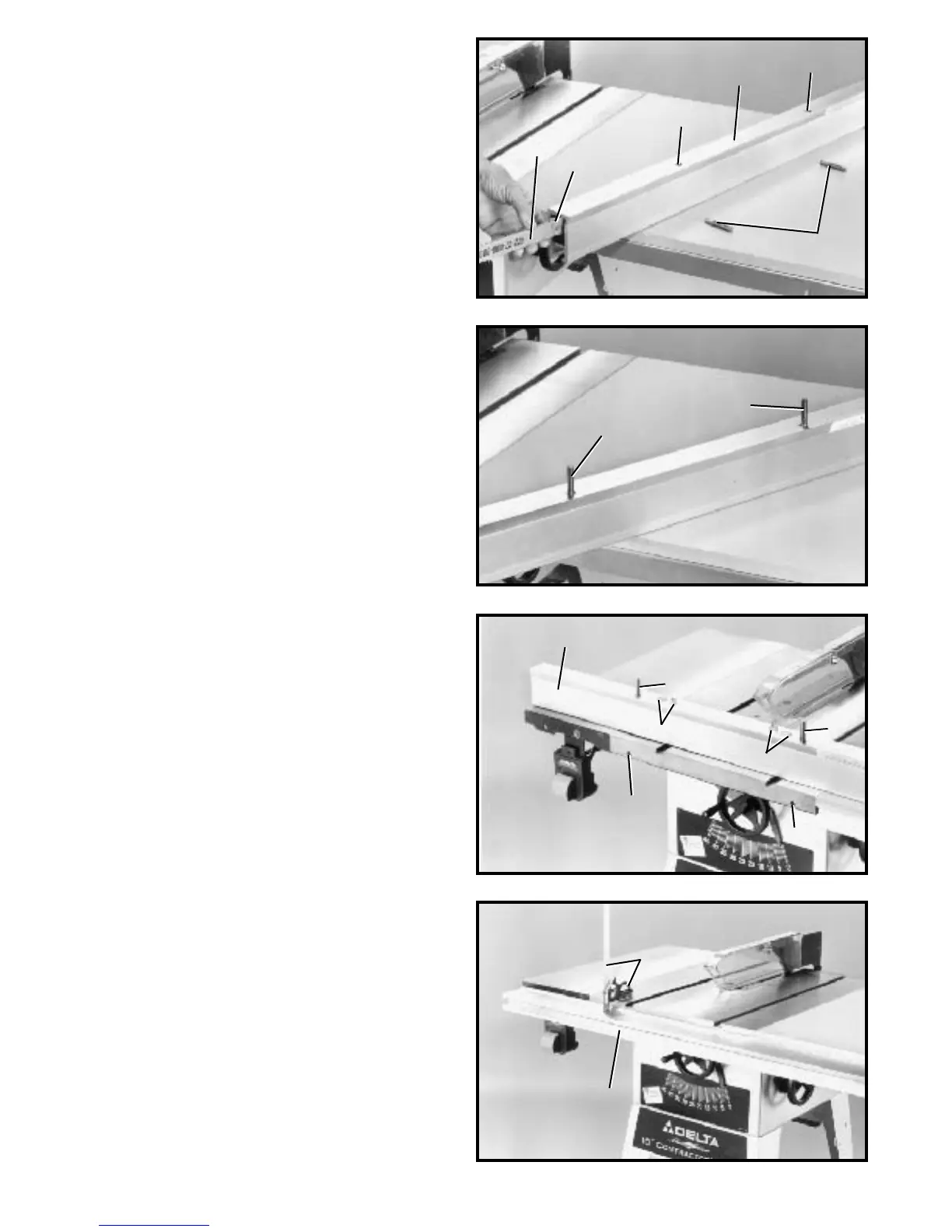

1. Locate the cardboard template (A) Fig. 56, from the
packing material of the Unifence.
2. Place two 3/8†-24 hex nuts, one of which is shown at
(B) Fig. 56, in position on the two t abs of the template (A) .
3. Insert template (A) Fig. 56, into the channel at the
end of guide rail (C) as shown, until the hex nut s (B) line
up with two holes (D) in guide rail.
5. Assemble the guide rail to the saw table by inserting
two studs (E) Fig. 58, into the two matching holes (F) in
the front of the saw t able. Fasten guide rail (C) Fig. 58, to
the saw t able with two flat washers and hex nut s (G).
6. Adjust the guide rail (C) Fig. 59, p arallel with the saw
table surface by placing a square (H) on the saw table at
both the lef t and right front ends of the t able, with the rule
of the square against the flat surface on top of the guide
rail. The guide rail (C) Fig. 59, can be adjusted up or
down slightly at either end. Af ter you are cert ain the
guide rail is p arallel with the t able surface, firmly tighten
the two hex nuts that fasten the guide rail to the t able.
4. Locate two double-threaded studs (E) Figs. 56 and
57, and thread the short finer threads as shown, into the
hex nuts (B) Fig. 56, located on the template (A) inside
the channel of the guide rail. Remove the cardboard
template from the inside of the guide rail.
