Chapter 5 Configuring in DIADesigner-AX
5-15
5__
Note:

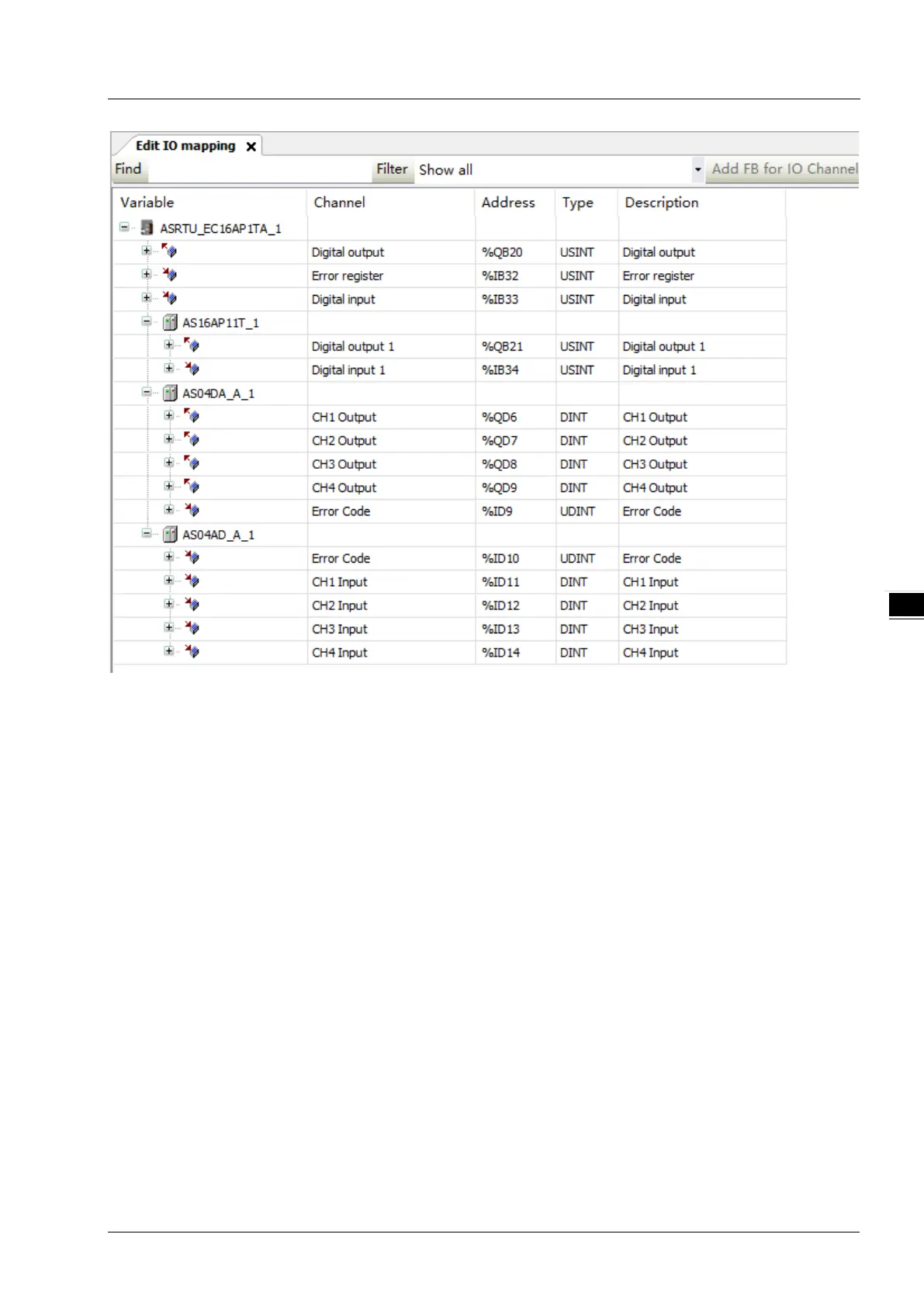

After you have modified the PDO mappings for ASRTU-EC16AP1TA, the PDO parameters for
ASRTU-EC16AP1TA and extension modules would show up simultaneously on the EtherCAT I/O mapping
page and the mapping devices and variables for the right-side extension modules on the Module I/O mapping
page would be invalid.
