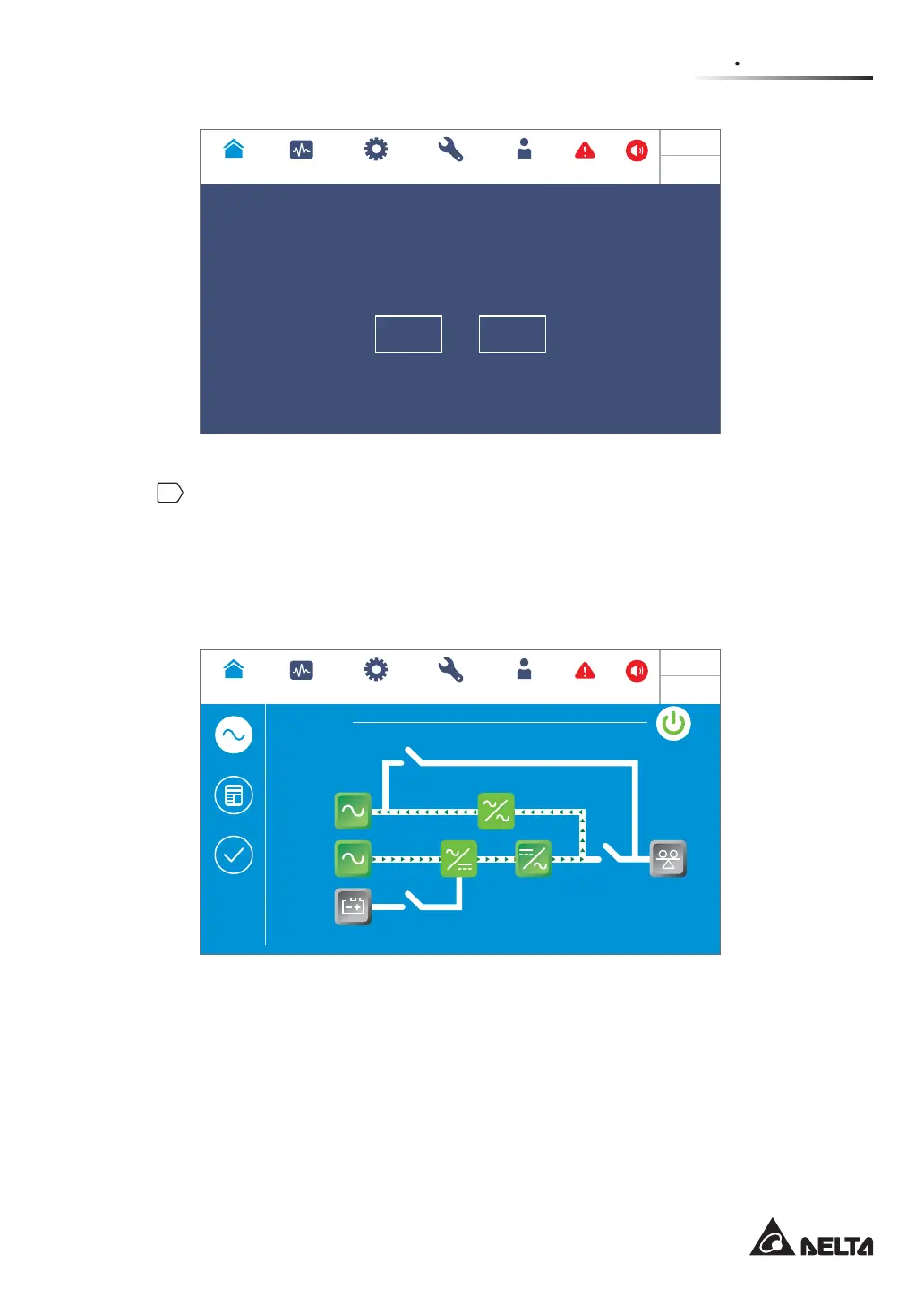

(Figure 6-43: Power On Reminder Screen)
10
After selection of ‘YES’ to start up the UPS’s inverter, each power module will start up
and perform self-inspection. At the same time, the system begins synchronization with
the bypass AC source. After the self-inspection is completed, the UPS will automatically
transfer to run in energy recycle mode and perform self-aging test. Now, the tri-color
LED indicator illuminates yellow and the following screen appears. For the tri-color LED
indicator location, please refer to Figure 2-11.
Energy
Recycle
MEASUREMENT
Power Flow
UPS-1.1 SETUP MAINTENANCE LOG IN
Administrator
2
WARNING
POWER FLOW
Maintenance
Bypass
Bypass
Mains
Load
0 %
Power Flow
Summary
System Status
0 %
0 mins
10:15
May 25,2018
(Figure 6-44: Energy Recycle Mode Screen)
