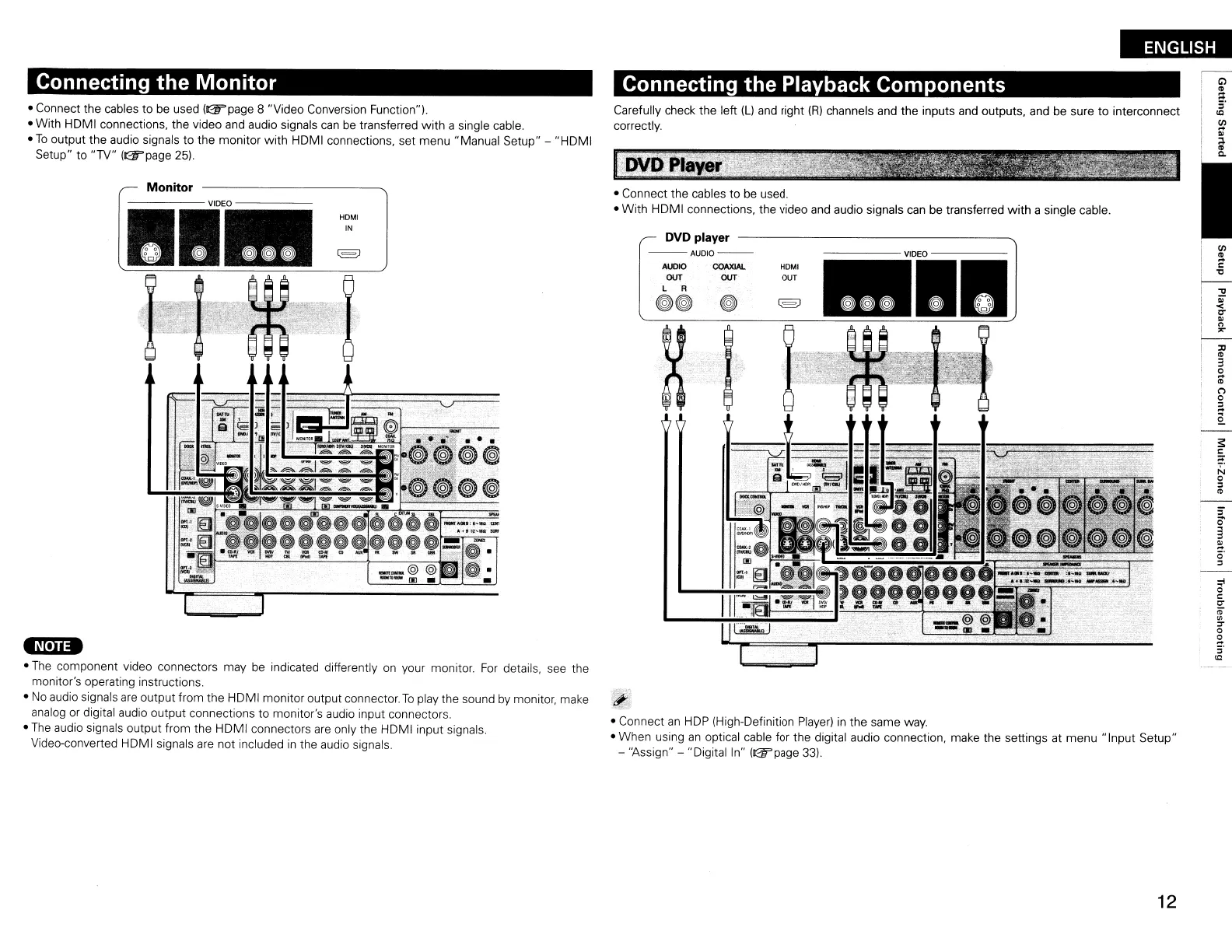

Connecting the Playback Components
Carefully check the left (l) and right (R) channels and the inputs and outputs, and be sure to interconnect
correctly.
• Connect the cables to
be used.
• With HDMI connections, the video and audio signals
can be transferred with a single cable.
• Connect
an HDP (High-Definition Player) in the same way.
• When using an optical cable for the digital audio connection, make the settings at menu "Input Setup"
- "Assign" -
"Digitalin" ((W'page 33).
Connecting the Monitor
• Connect the cables to be used (Gf'page 8 "Video Conversion Function")'
• With HDMI connections, the video and audio signals
can be transferred with a single cable.
•
To output the audio signals to the monitor with HDMI connections, set menu "Manual Setup" - "HDMI
Setup" to "TV"
(Gf'page 25).
-N·n-
• The component video connectors may be indicated differently on your monitor. For details, see the
monitor's operating instructions.
• No audio signals are output from the HDMI monitor output connector.
To play the sound by monitor, make
analog or digital audio output connections to monitor's audio input connectors.
•
The audio signals output from the HDMI connectors are only the HDMI input signals.
Video-converted HDMI signals are not included
in the audio signals.
12

Denon AVR-1908 Specifications

General

Channels	7.1
Power Output	90W per channel (8 ohms, 20Hz-20kHz, 0.08% THD)
HDMI Inputs	2
HDMI Outputs	1
Dolby Digital	Yes
DTS	Yes
Type	AV Receiver
Component Video Inputs	3
Component Video Outputs	1
Digital Audio Inputs	2 Optical, 2 Coaxial
Tuner	AM/FM
Frequency Response	10Hz-100kHz (+1, -3dB)
Input Sensitivity/Impedance	200mV/47k ohms
Signal-to-Noise Ratio	98 dB
Power Consumption	460W
Surround Sound Formats	Dolby Digital, DTS
Total Harmonic Distortion	0.08%
Tuner Frequency Range	AM: 522-1611 kHz, FM: 87.5-108.0 MHz
Standby Power Consumption	Less than 1W
