SERVICE MANUAL
Schematics and drawings
(Rev. 0) RTG PLUS (120V)
9-49
RTG PLUS

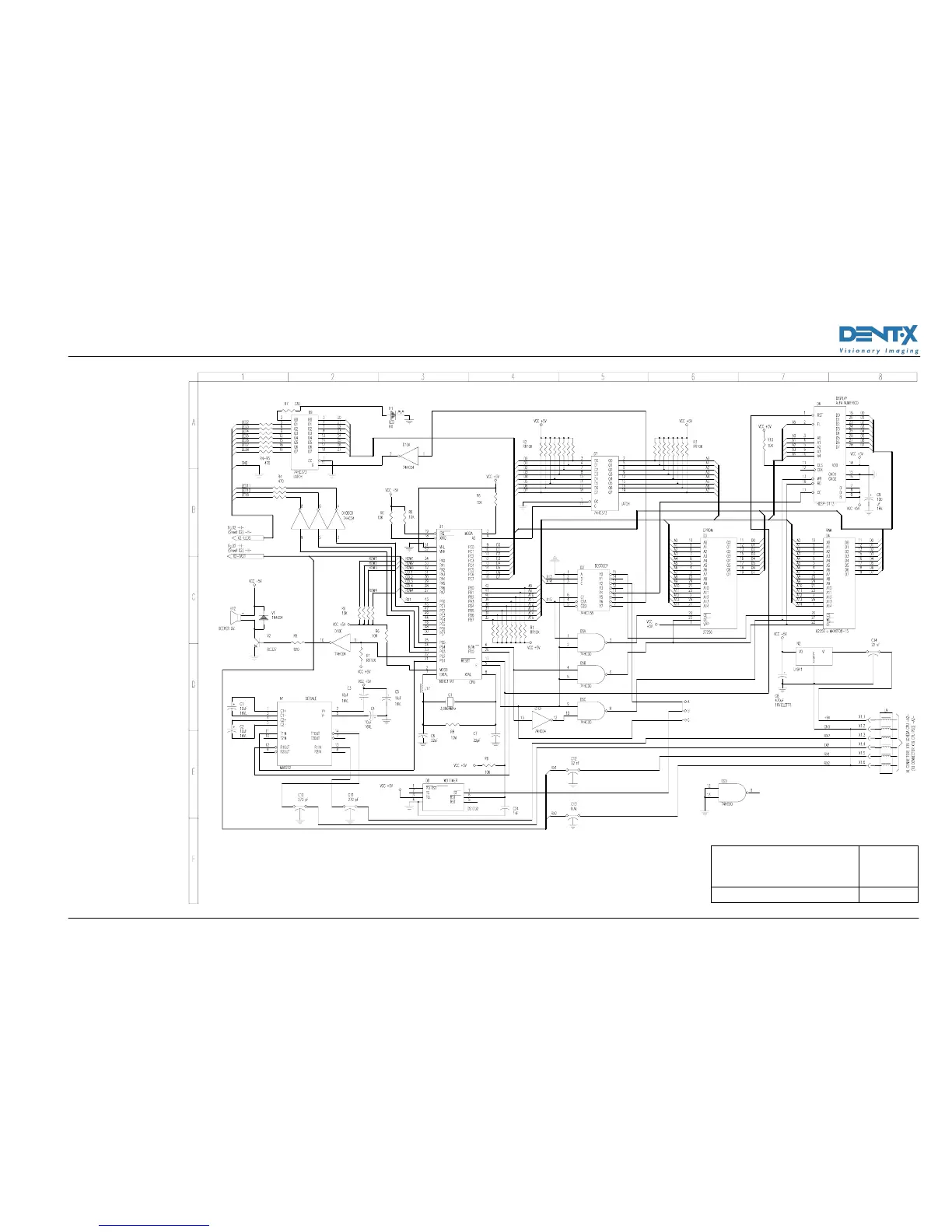

Circuit diagram
Remote Control PCB
9
Code 39089138 - Rev. 2 Page 1 of 3
