Installation
RTG PLUS (120V) (Rev. 0)
6-2
6.1
6.16.1
6.1 Panoramic version with legs
Panoramic version with legsPanoramic version with legs
Panoramic version with legs
After unpacking the components, proceed to assemble in the following
order:
1. Rest the column on two wooden blocks with the guide turned
upwards.
2. Assemble the legs by means of the 4 fastening screws. All assembly
screws are inserted into the respective housing holes and must be
removed before each assembly phase.

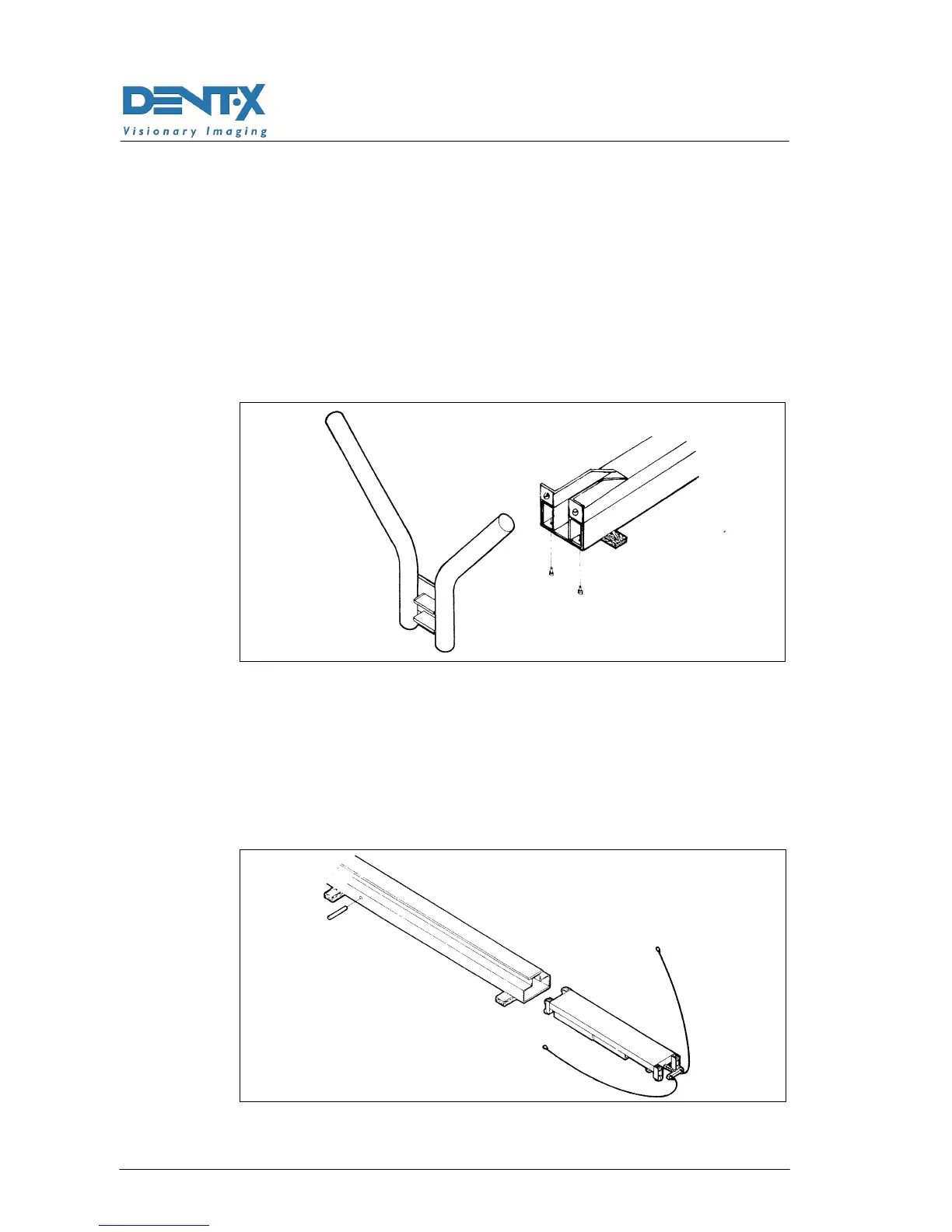

Figure 6-1
3. Insert the counterweight stop pin into the appropriate hole located at
about mid-stand.
4. Position the counterweight (154 pounds - 70 kg) with the flat surface
upwards, and the rear pocket facing backwards.
5. Insert the counterweight in the column and push it against the stop,
making sure that the metal ropes are not crossed.
Figure 6-2
