DENT-X ROTOGRAPH PLUS - Projection of Vertically Non-Concentric Ear Centering Circles

SERVICE MANUAL
Checkout and adjustment
RTG PLUS (120V) (Rev. 0)
7-24
7.5.4.2
7.5.4.27.5.4.2
7.5.4.2 Projection of Vertically Non
Projection of Vertically NonProjection of Vertically Non
Projection of Vertically Non-
--
-Concentric Ear Center
Concentric Ear CenterConcentric Ear Center
Concentric Ear Centering Circles
ing Circlesing Circles
ing Circles

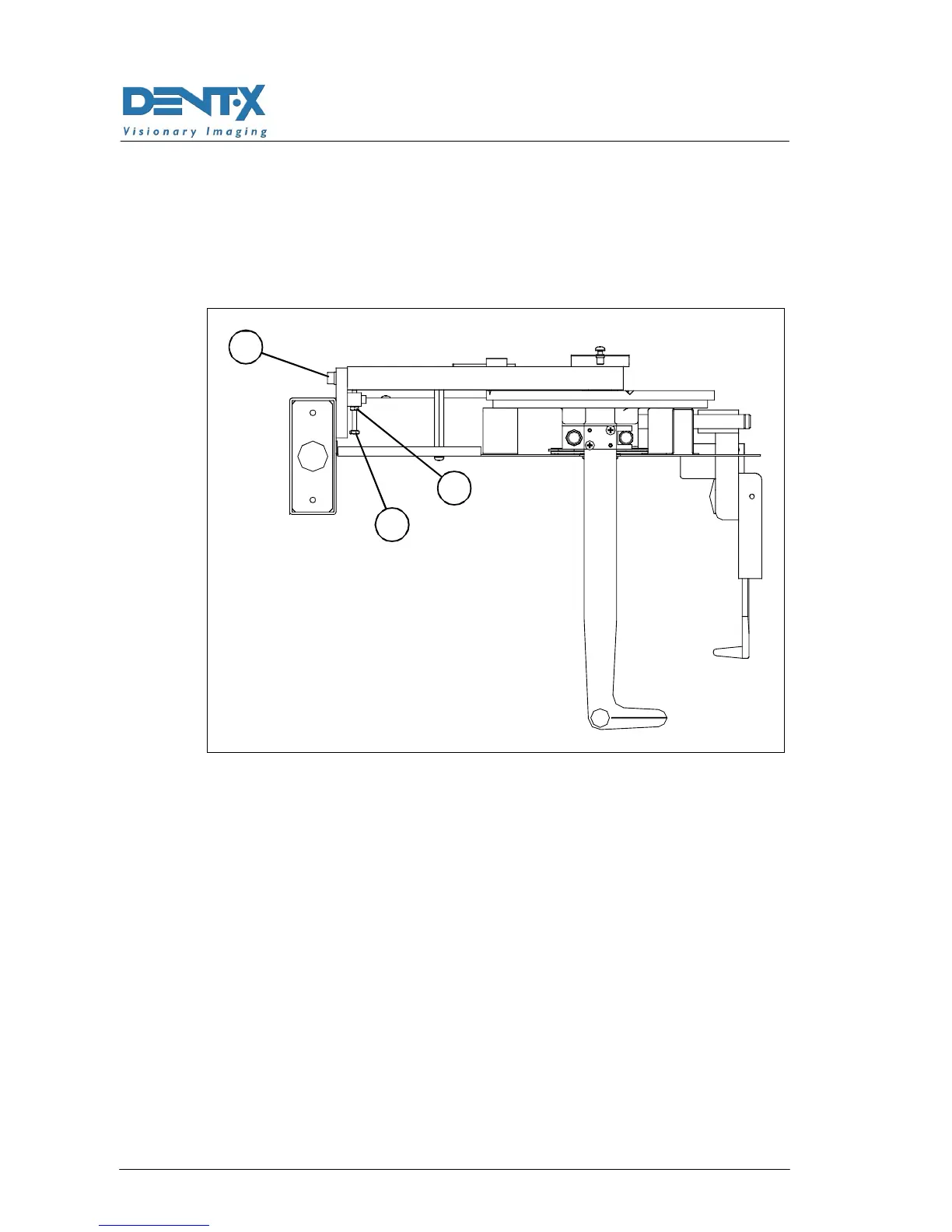

Release the two screws "F". Acting on screw "G" set the position of the
skull clamp small arm: once the alignment has been achieved tighten
bolt "H" and make an exposure for verification. Tighten screws "F".
F
G
H
Figure 7-7
