SERVICE MANUAL
Installation
(Rev. 0) RTG PLUS (120V)
6-11
6.3
6.36.3
6.3
Panoramic versio
Panoramic versioPanoramic versio
Panoramic version with CEPH
n with CEPHn with CEPH
n with CEPH
To install ROTOGRAPH PLUS in the version with CEPH device proceed
as indicated in paragraph 6.1. steps 1 to 17 and 6.2. steps 1 to 7
according to its being with or without legs, bearing in mind that for both
versions the wall security fastening has to be executed (see previous
paragraph 6.2) and that the counterweights to be inserted are of the "B"
type reported in the picture at Figure 6-7.
1. Connect the interconnection cables out from the slider with those
out from the CEPH arm.

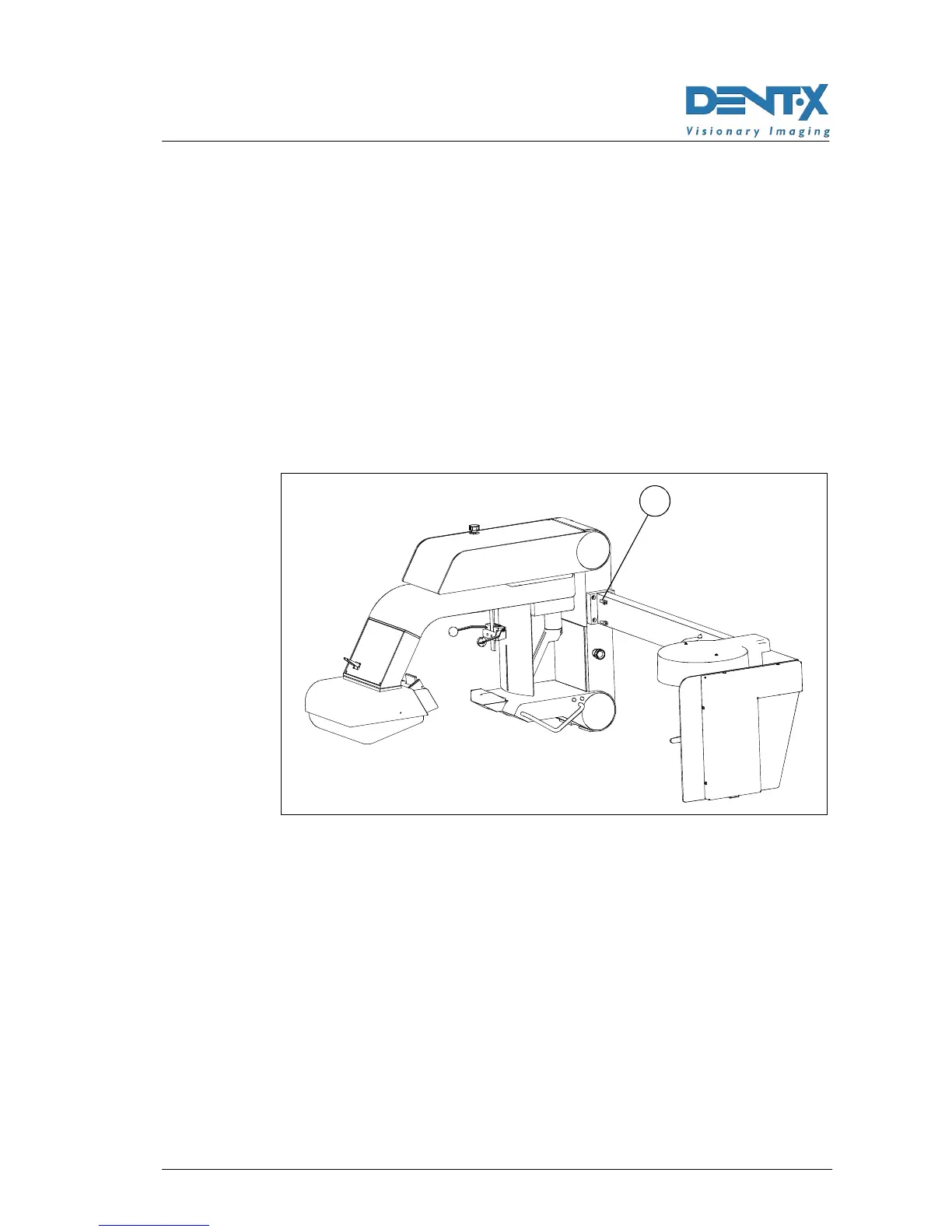

2. Mount the CEPH arm to the slider by the four screws "70" M8x25
taking care not to pinch the cables coming out from the slider.
70
Figure 6-13
3. Using a bubble level check that the CEPH cassette holder has the
same inclination of the plane supporting the chin rest.
