SERVICE MANUAL
Installation
(Rev. 0) RTG PLUS (120V)
6-3
6. Align the motor group sliding bearings (110 pounds - 50kg) with the
appropriate guides. Remove the motor group upper stop pin and
insert the unit (Figure 6-5), allowing only the last ten inches to
extend from column. Care must be taken not to scratch the column.

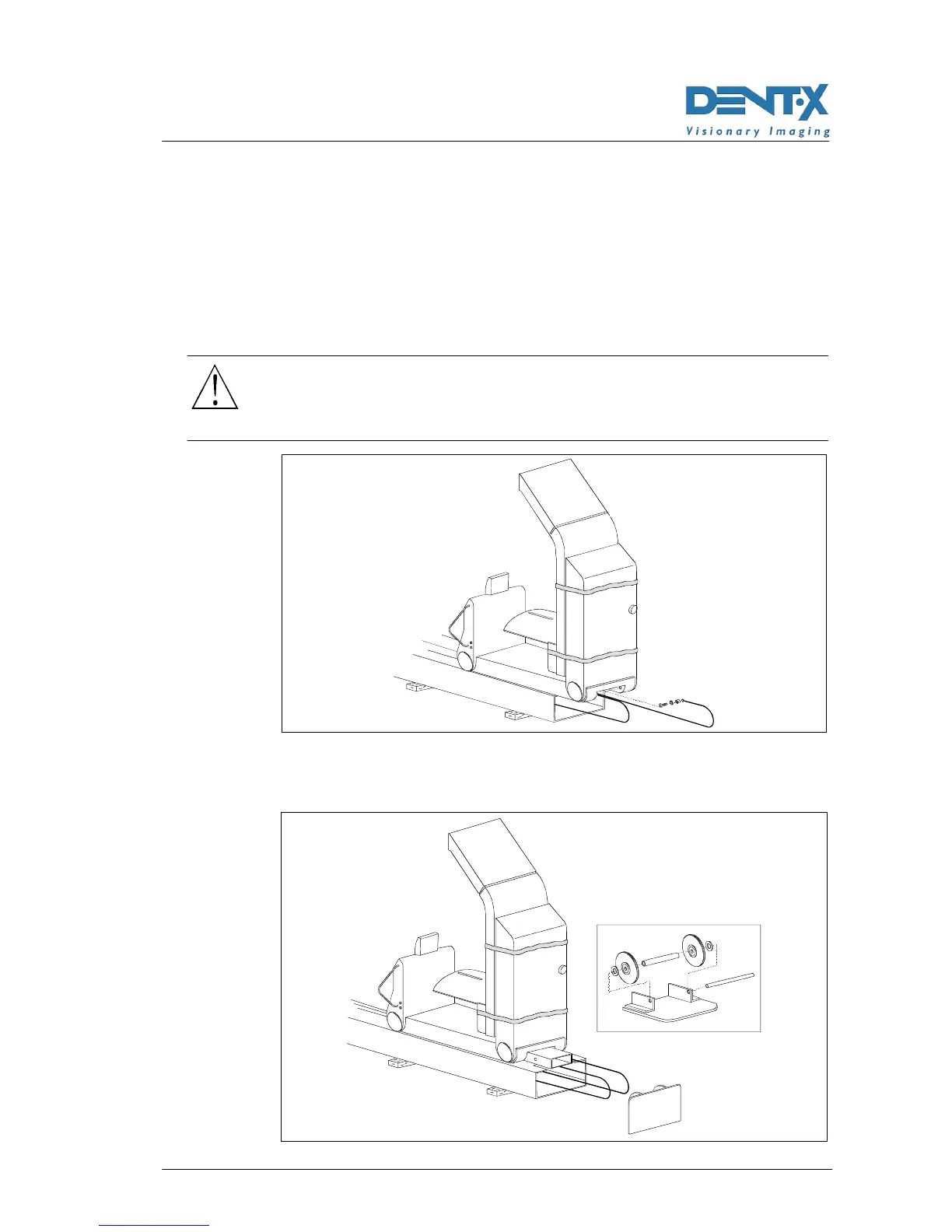

7. Stretch the metal ropes, make sure that they are not crossed, curve
the ends backwards and upwards and fasten them to the motor
group with the appropriate screws, washers and spacers. Fully insert
the motor group on the guide.
WARNING:
During insertion of the motor group on the guide, pay attention not to
place your fingers between track and carriage: they must be seriously
pinched.
Figure 6-3
8. Assemble the pulley support with the respective ropes positioning
the round corners in the front side of the column.
Figure 6-4
