SERVICE MANUAL
Installation
RTG PLUS (120V) (Rev. 0)
6-4
9. Keep the ropes under tension by acting on the pulley support and,
checking that the ropes do not come out of their guides, by acting on
the slider push the whole assembly until the pulley unit is inserted
in its housing on the upper part of the column.
10. Assemble the motor group upper stop pin on the stand.

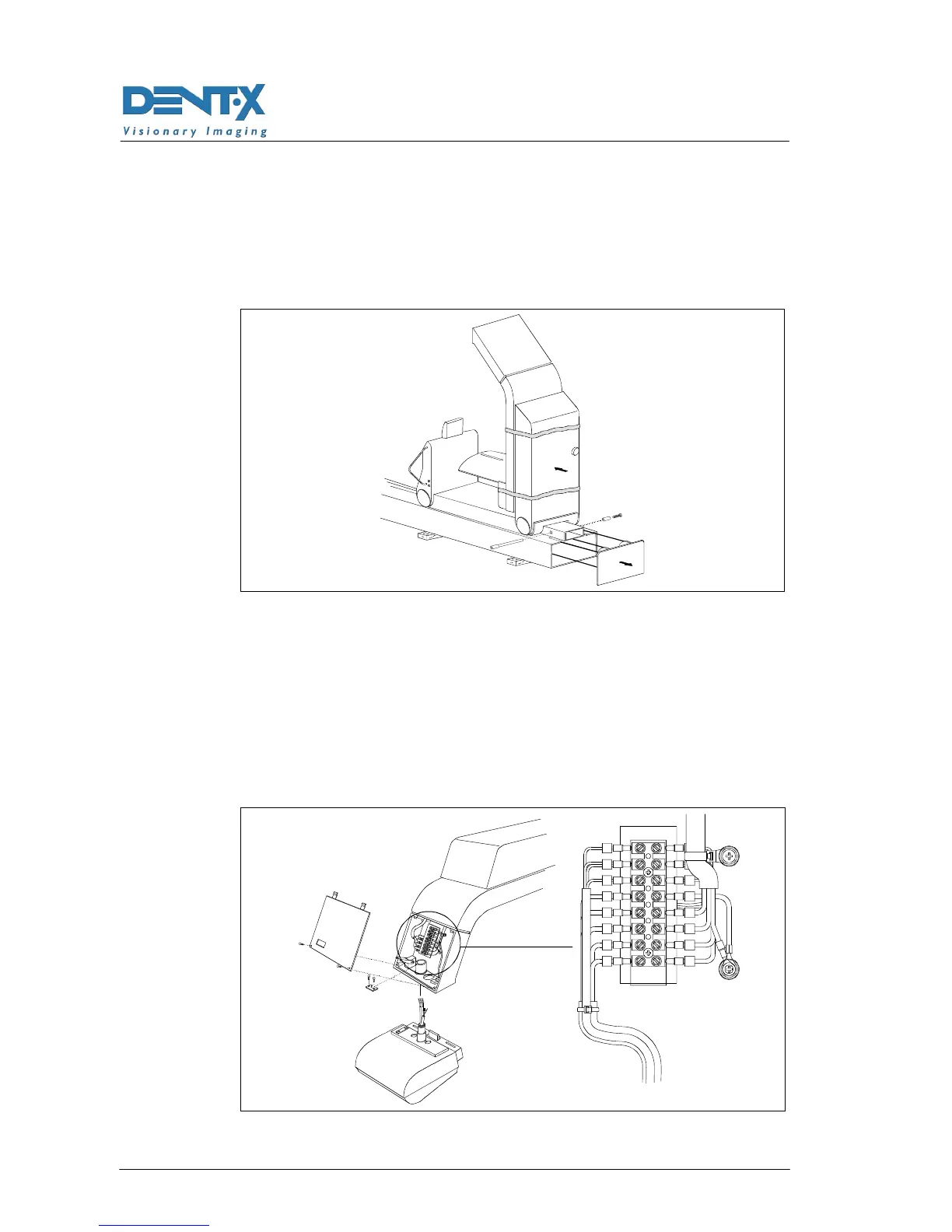

Figure 6-5
11. Position the column (375 pounds - 170kg) vertically and place it at a
minimum distance of about 12" (30cm) from the wall.
12. Remove the tubehead back cover plate and the safety plate.
13. Assemble the tubehead by first inserting the cables and then the pin
into the fastening bushing; secure it with the plate previously
removed and connect the wires to the terminal strip making
reference to Figure 6-6.
X23
1
2
3
4
5
6
7
8
1
2
3
4
5
6
FROM TUBEHEAD
Figure 6-6
