SERVICE MANUAL
Checkout and adjustments
(Rev. 0) RTG PLUS (120V)
7-17
C1. In case of horizontal regulation for Ceph predisposed units, release
screws "105" (see Figure 7-2) and rotate the tubehead in the desired
direction. Make an exposure and if OK screw-in the screws.
C2. In case of horizontal regulation for ST units, the cover of the arm
supporting the tubehead has to be removed, release the 2 grubs
"104" (see Figure 7-2) and rotate the tubehead in the desired
direction. Make an exposure and if OK screw-in the grubs.
105
118
104
104
106

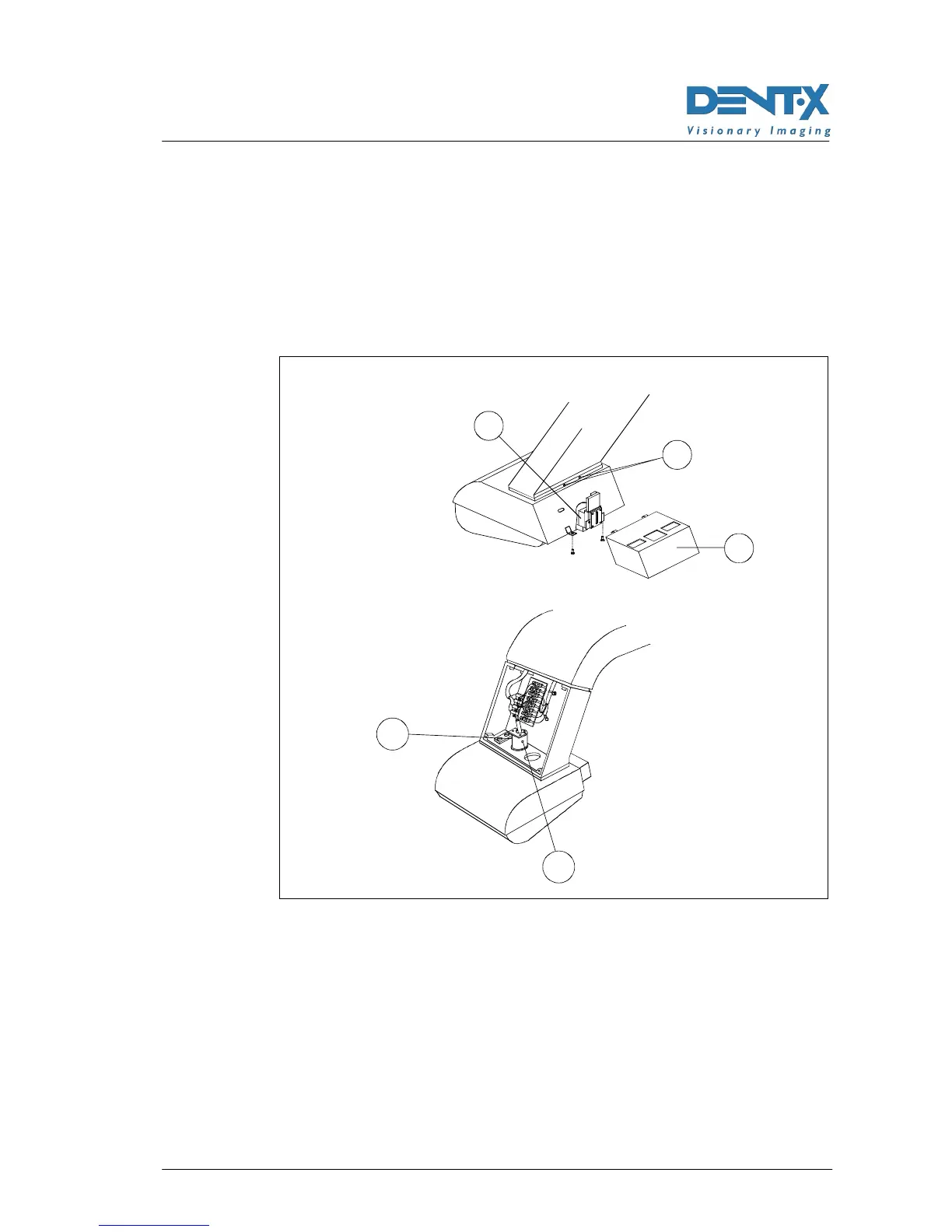

Figure 7-2
D1. Should it be necessary to adjust the vertical dimension, on Ceph
predisposed units, by either raising or lowering it, adjust the screw
"122" (see Figure 7-3) for a rough adjustment and "128" for a fine
adjustment as shown on the 2
nd
drawing of the next Figure.
D2. Should it be necessary to adjust the vertical dimension on ST
units, act on the 4 screws holding the leaded slot in position.
