devolo dLAN® 200 AVpro Project Manual
9

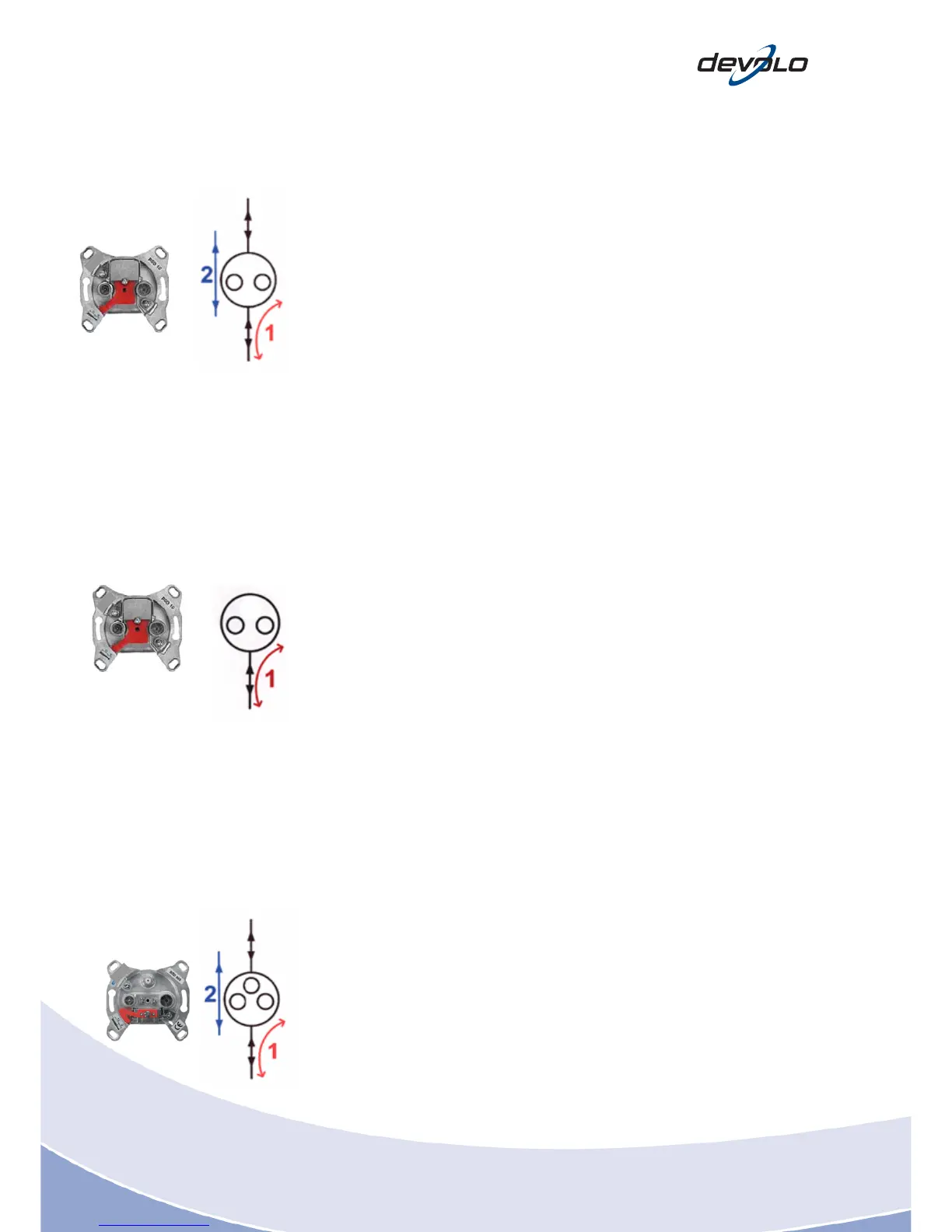

3.3.1 Antenna outlets (wall)
1) Antenna outlet as pass-through outlet (two connections)
Technical data:
Designation 1: pass-through attenuation 11 dB to 20 dB
Designation 2: pass-through attenuation 1.5 dB to 3 dB
Shielding requirements: > 80 dB
a) Option: broadband
5 MHz to 862 MHz: television
5 MHz to 862 MHz: radio
 This option is suitable.
b) Option: selective
87.5 MHz to 108 MHz: VHF radio
118 MHz to 862 MHz: television
 This option is unsuitable!
2) Antenna outlet (two connections)
Technical data:
Designation 1: pass-through attenuation approx. 4 dB
Shielding requirements: > 80 dB
a) Option: broadband
5 MHz to 862 MHz: television
5 MHz to 862 MHz: radio
 This option is suitable.
Option: selective (is rarely installed)
87.5 MHz to 108 MHz: VHF radio
118 MHz to 862 MHz: television
 This option is unsuitable!
3) Modem antenna outlet as pass-through outlet (two connections)
Technical data:
Designation 1: pass-through attenuation 11 dB to 20 dB
Designation 2: Pass-through attenuation 1.5 dB to 3 dB
Shielding requirements: > 80 dB
a) Option: broadband
5 MHz to 65 MHz (= modem): devolo dLAN 200 AVpro
