devolo dLAN® 200 AVpro Project Manual
21
TCU connection
socket with
integrated DSL
splitter for
operation on
occupied telephone
cables

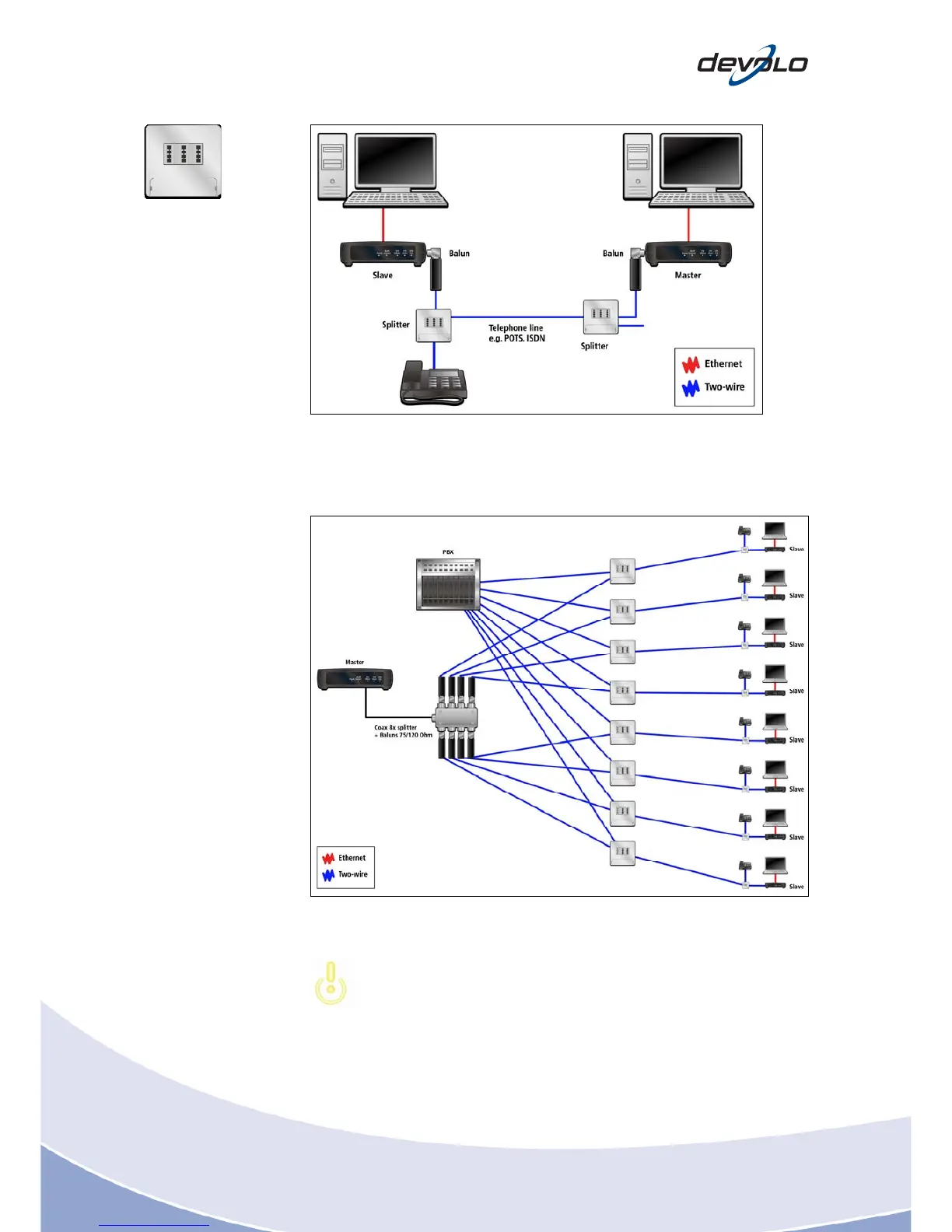

Fig. 4-3: Tapping the Ethernet signal on the antenna socket
4.4 Point-to-multipoint on telephone lines (with telephone
operation)
Fig. 4-4: Combined point-to-multipoint network for dLAN and telephone over
2-wire lines
You should always test for compatibility with proprietary system telephones
behind a branch exchange (UKo interface), since some manufacturers'
occupied frequencies extend beyond those filtered along Annex B, and can
cause malfunctions in the branch exchange. In this case, it is better to use
an available wire pair (cf. Section 4.2).
