devolo dLAN® 200 AVpro Project Manual
28

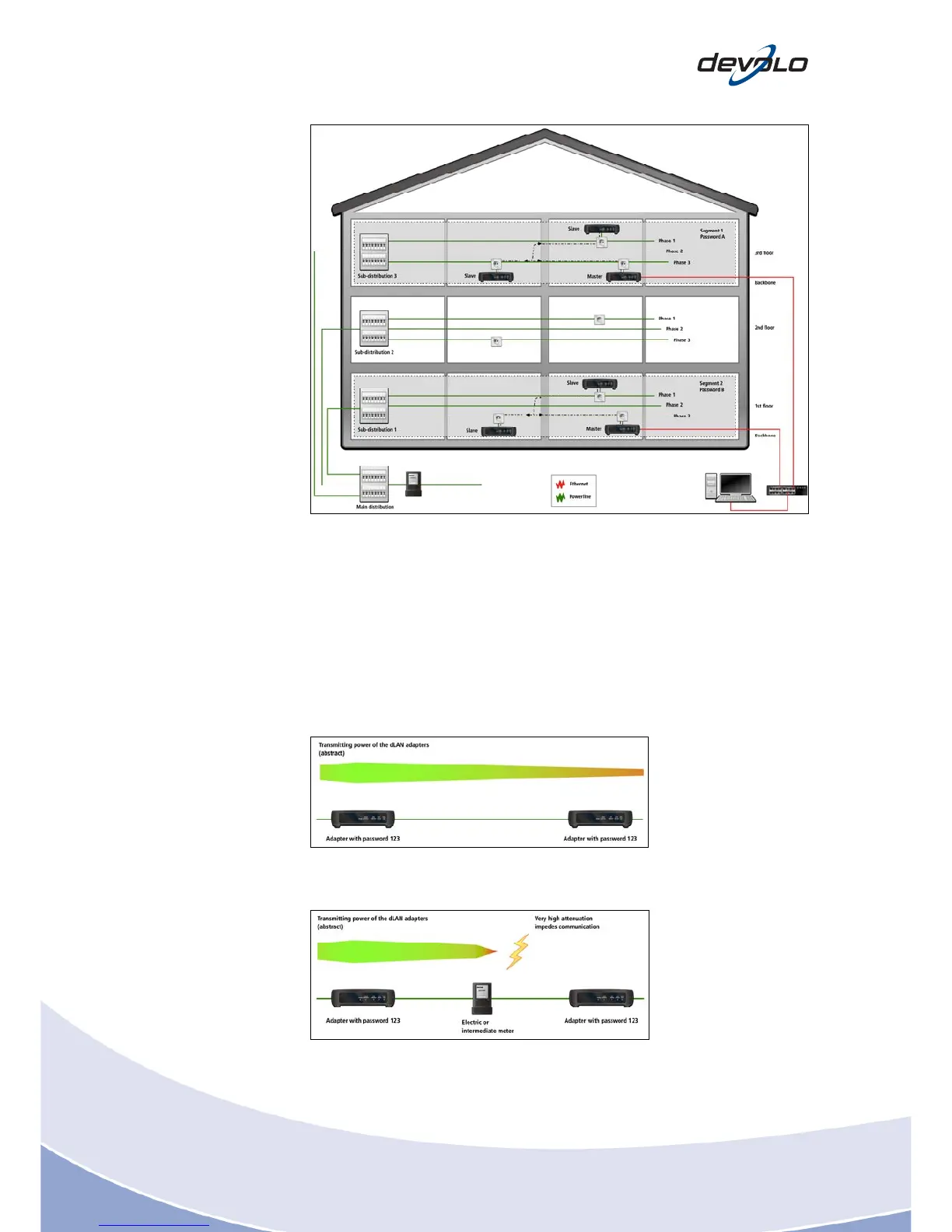

Fig. 5-5: Establishing dLAN network segments over proprietary password groups
with an Ethernet backbone
5.5 Repeater circuits in power supply systems
Two dLAN adapters are connected with a network cable to create a repeater circuit.
It is not important here whether the cable is a crossover cable or a straight-through
cable. The following contains various examples of using repeater circuits on power
lines. You should note that this is an abstract illustration, which is mainly designed
to represent the respective principle.
Fig. 5-6: Direct connection of two dLAN AVpro units
Fig. 5-7: Attenuating the transmission by interposing a electricity meter
