4.5 BNC networks, 10Base2 networks
dLAN 200 AVpro technology can be used on 10Base2 BNC networks to achieve a
high bandwidth.

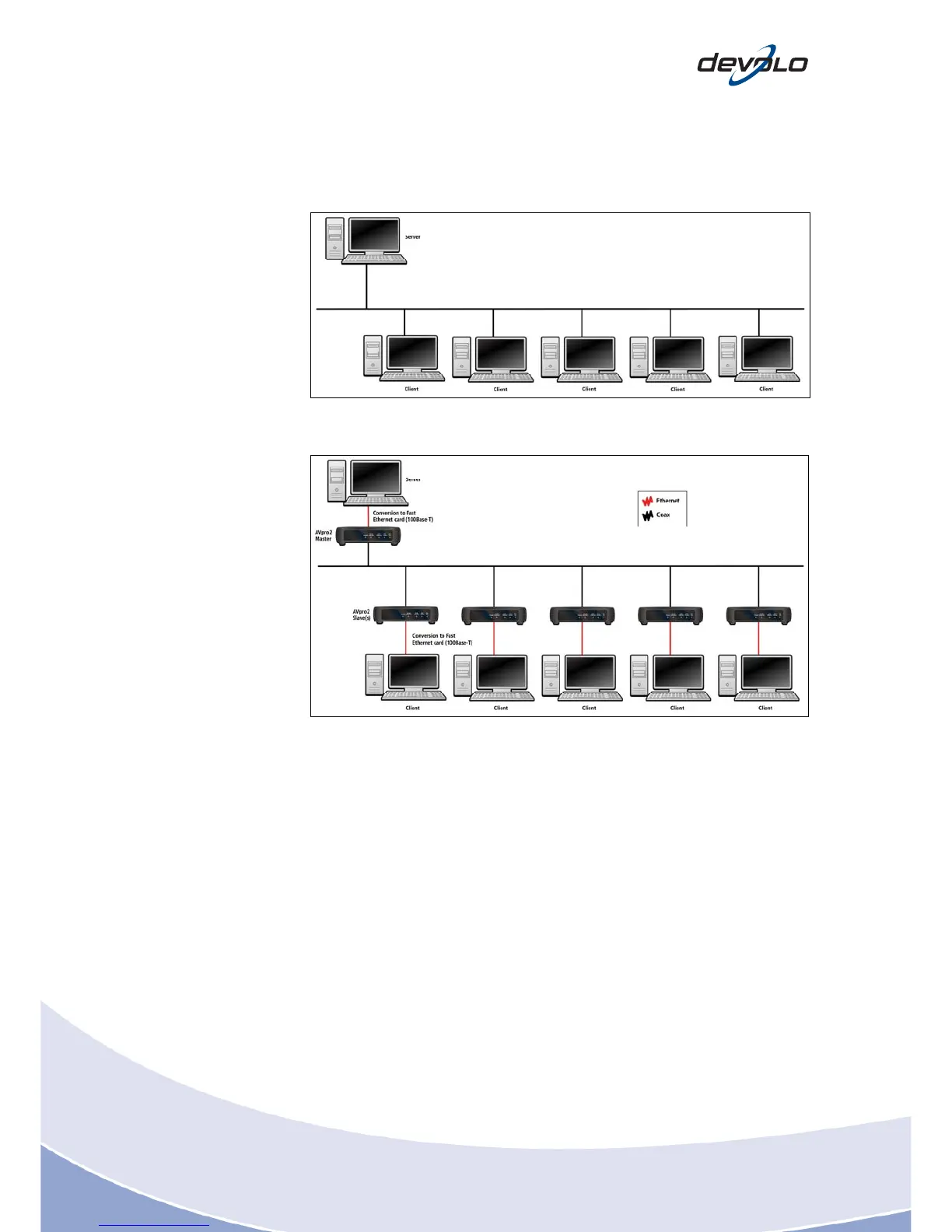

Fig. 4-5: Standard 10 Mbit/s BNC network (10Base2 coax)
Fig. 4-6: 200 MBit/s dLAN network via installed BNC coax cabling
