3.3.3. Sample rate 
One of the most important settings is the sample rate. The sample rate defines how many data points                  
IOLITE® will transfer to DEWESoft®. A higher sample rate also means that more data needs to be                 
transferred via EtherCAT® to your computer. 

The sampling speed mainly depends on your application. To display your signal in a time domain with a                  
good time resolution, you should sample 10 to 20 times faster than the frequency of the signal that you                   
want to measure, e.g. 1 kS/s for a 50 Hz sine-wave. If you have a lot of high frequency components, it may                      
be necessary to sample 100 times faster, e.g. 5 kS/s for the 50 Hz sine-wave, or even more. If you display                     
only the frequency domain (FFT analysis), a 2.5 times faster sampling would be sufficient (125 S/s for the                  
50 Hz sine-wave). The higher the sampling rate, the better the time resolution. But also the file size will                   
increase. 


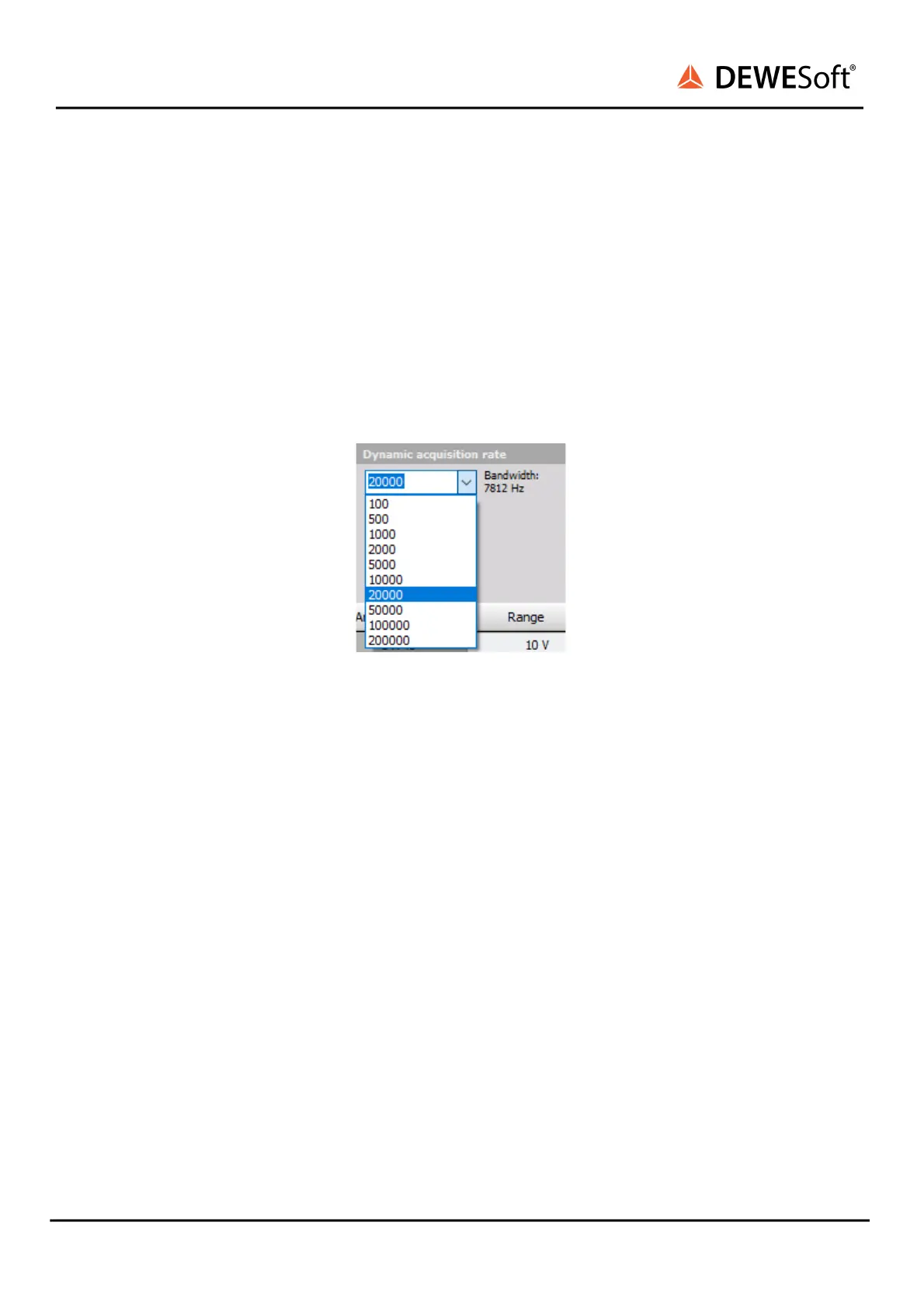

Sample rate 
 
