IOLITE® 
TECHNICAL REFERENCE MANUAL
5.8.2.1. CNT: LEMO L1B7f Connector: Pinout

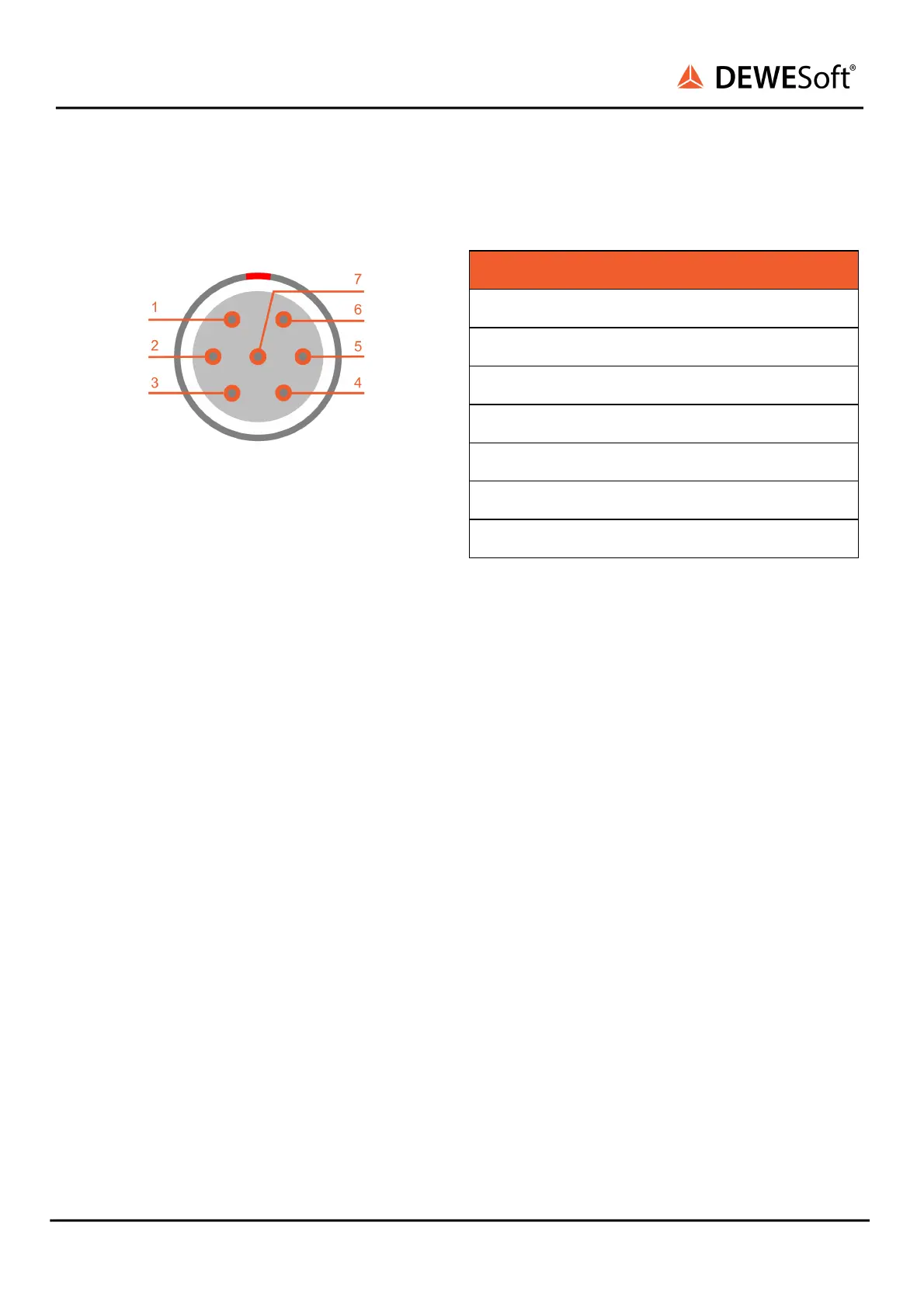

CNT connector: pin-out (7-pin LEMO female)
Pin
Name
Description
1
IN0/A
Digital input 0/A
2
IN1/B
Digital input 1/B
3
IN2/Z
Digital input 2/Z
4
GND
Ground
5
+5V
5 V supply
6
+12V
12 V supply
7
GND
Ground
Connector on the module: EGG.1B.307.CLL
Mating cable connector: FGG.1B.307.CLAD52
IOLITE® V20-1 88 / 101
