IOLITE® 
TECHNICAL REFERENCE MANUAL

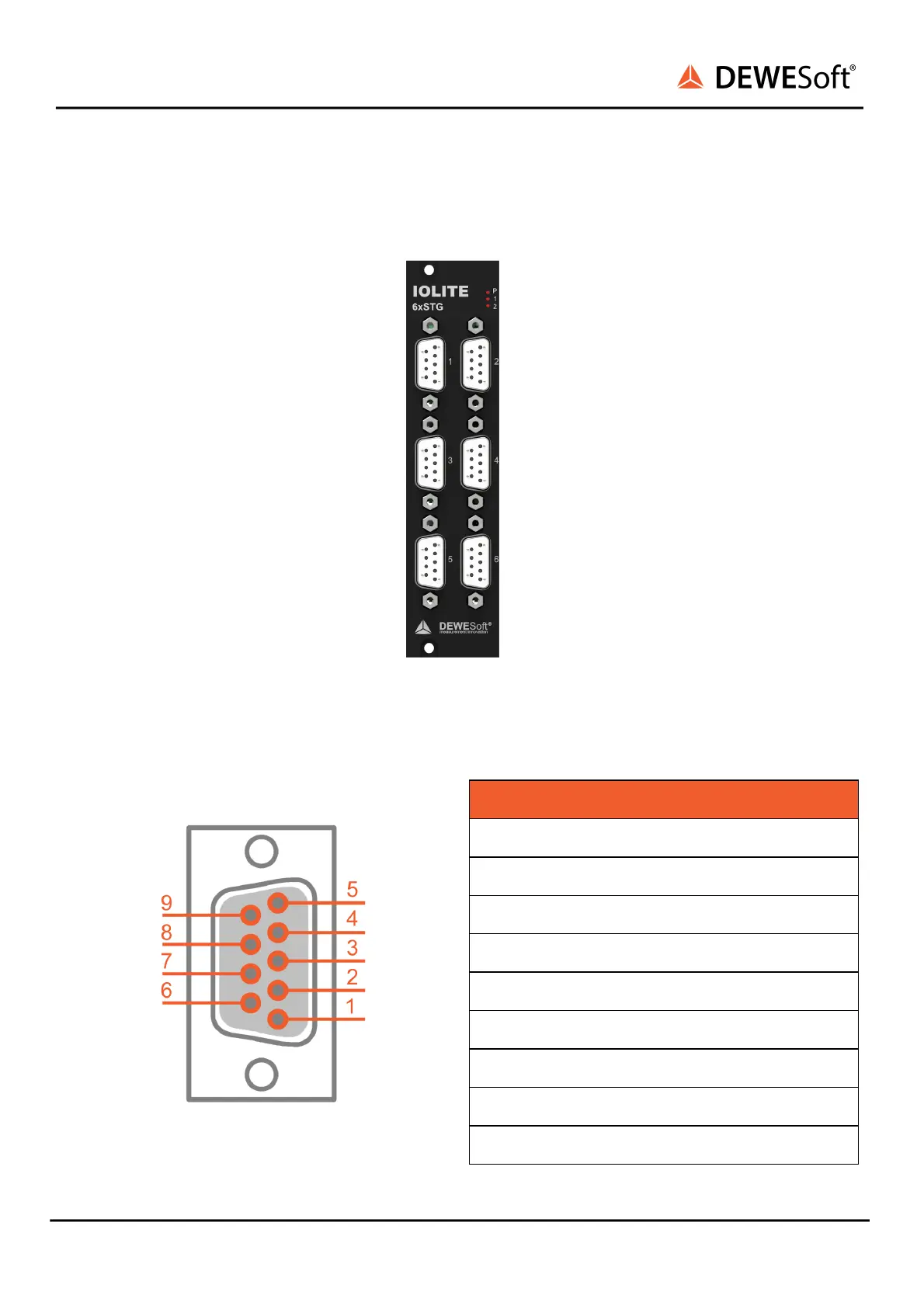

5.6.2. STG: DSUB-9 Connector
IOLITE-6xSTG module has 6 standard DSUB-9 female connectors for voltage or strain measurement.
IOLITE-6xSTG front
5.6.2.1. STG: DSUB-9 Connector: Pinout
STG connector: pin-out (DSUB-9 female)
Pin
Name
Description
1
Exc+
Excitation+
2
In+
Input+
3
Sns-
Sense-
4
GND
Ground
5
R+
¼ Bridge / Shunt
6
Sns+
Sense+
7
In-
Input-
8
Exc-
Excitation-
9
TEDS
TEDS
IOLITE® V20-1 76 / 101
