IOLITE® 
TECHNICAL REFERENCE MANUAL 


4.3.2.3.3. IOLITEs: Boxed Chassis: BUS 1: IN: Pinout 

IN connector of primary EtherCAT bus (BUS 1) is a 8-pin LEMO 1B male connector. 








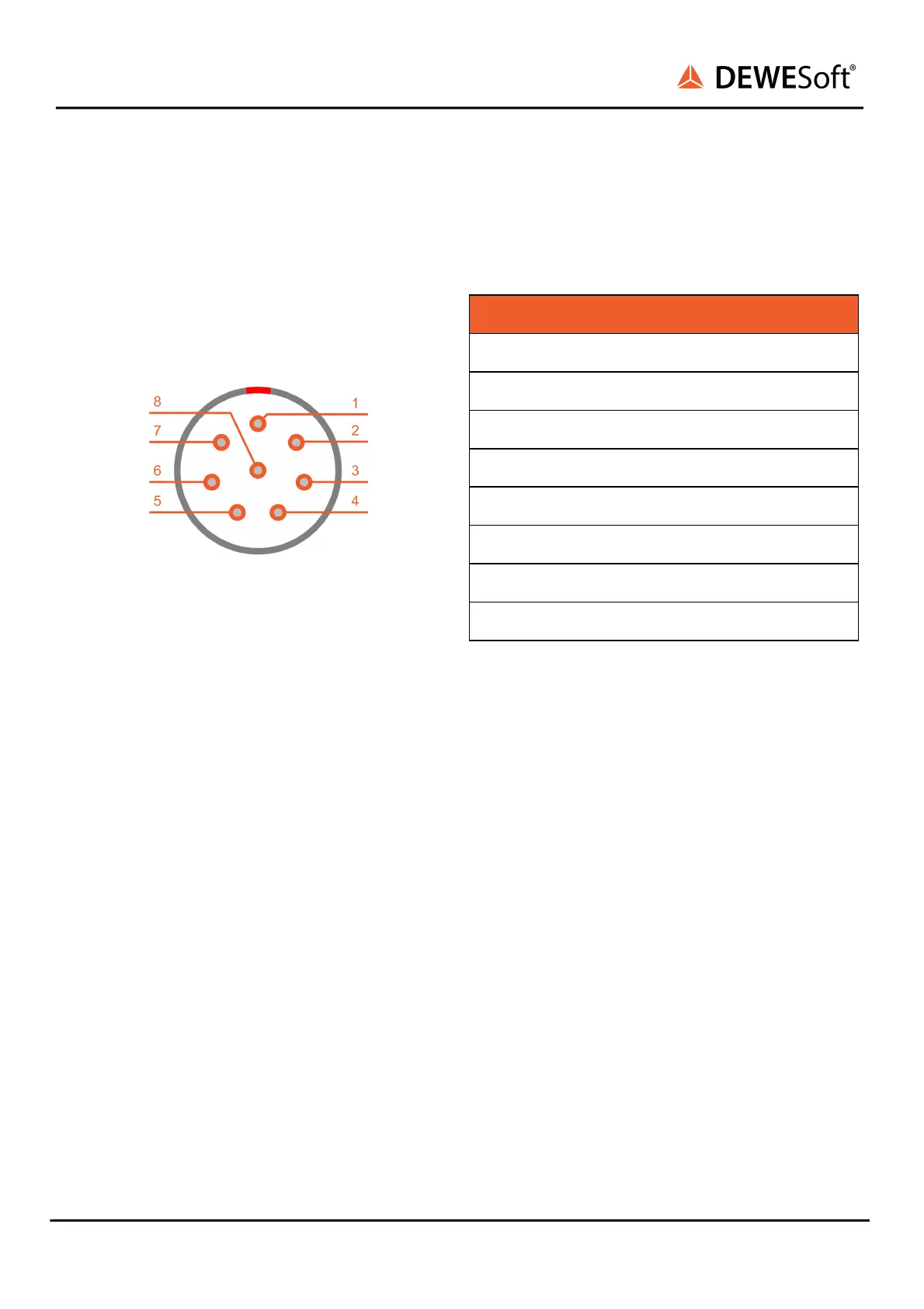

EtherCAT connector: pin-out (8-pin LEMO male) 


Pin 
Name 
Description 
1 
TX_P 
Transmission + 
2 
TX_N 
Transmission - 
3 
RX_P 
Reception + 
4 
RX_N 
Reception - 
5 
- 
- 
6 
- 
- 
7 
GND 
Ground 
8 
GND 
Ground 

BUS 1 IN connector (on the device): EEJ.1B.308.CLD 
Mating connector (for the cable): FGJ.1T.308.CLL.1433 

 
