IOLITE® 
TECHNICAL REFERENCE MANUAL
4.3.2.6. IOLITEs: Boxed Chassis: Connection of IOLITEs and SIRIUS® device
Connect power supply cable to SIRIUS (PS-120W-L1B2f). Then connect the USB cable
(CABLE-USBAmini-USBBS-1.8m) to the USB port on the back panel of the SIRIUS device. Finally connect
the other side of the USB cable to the USB port on PC.
Use power supply daisy chain cable (e.g. L1B2m-L1B2f-0.4m) to enable power supply for IOLITEs.
Then connect L1T8f-RJ45-1M cable (LEMO side) to IN connector of BUS 1 on IOLITEs back panel. Finally
connect the other side of the L1T8f-RJ45-1M cable (RJ45 side) to the LAN port of PC.
In order to have synchronized data between IOLITE and SIRIUS, connect SYNC cable (e.g.
L00B4m-L00B4m-0.2m) to the SYNC connector on IOLITE-GATE and the other side of cable to the SYNC
connector on SIRIUS.

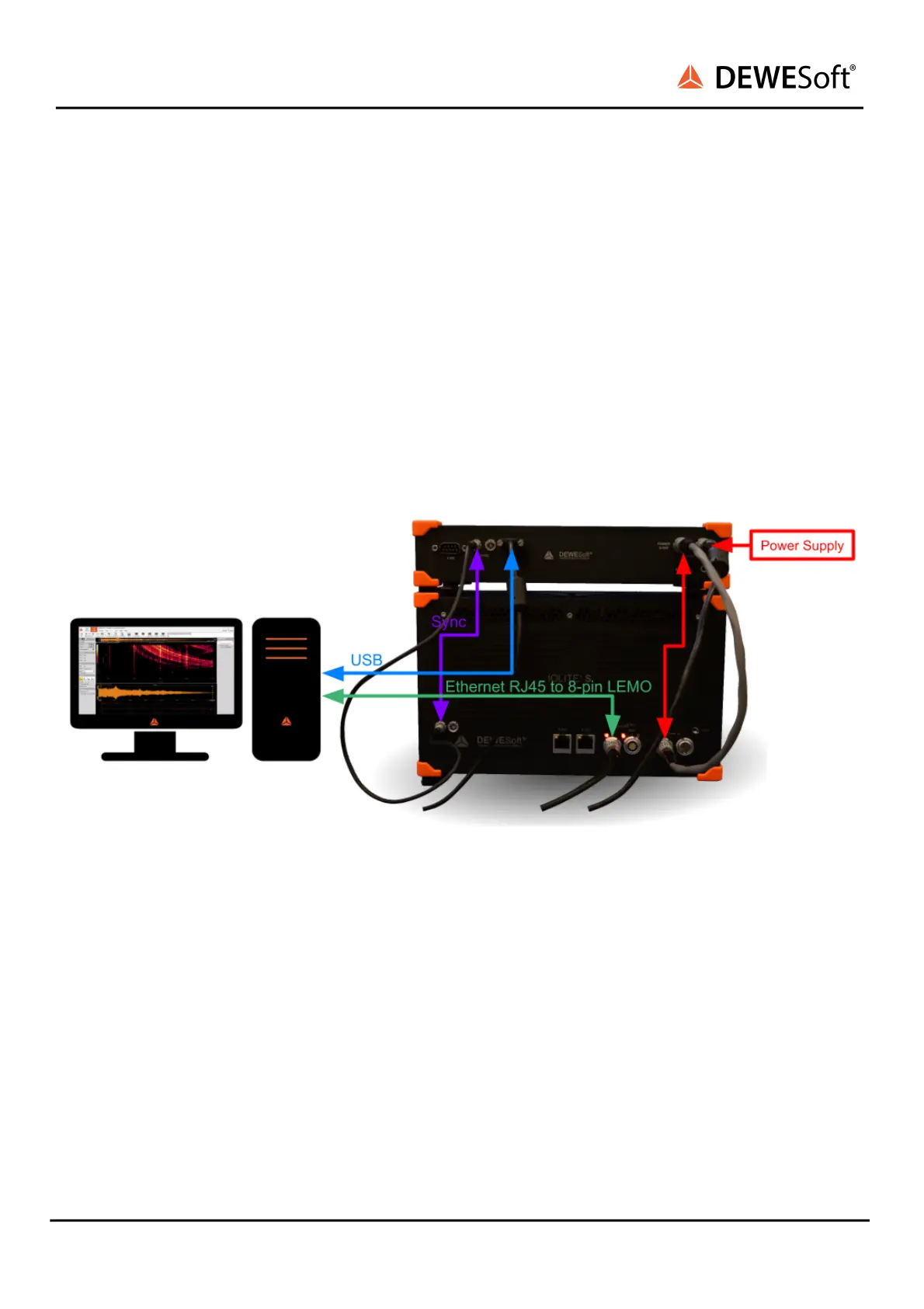

Connection of IOLITEs and SIRIUS® device
IOLITE® V20-1 45 / 101
