IOLITE® 
TECHNICAL REFERENCE MANUAL

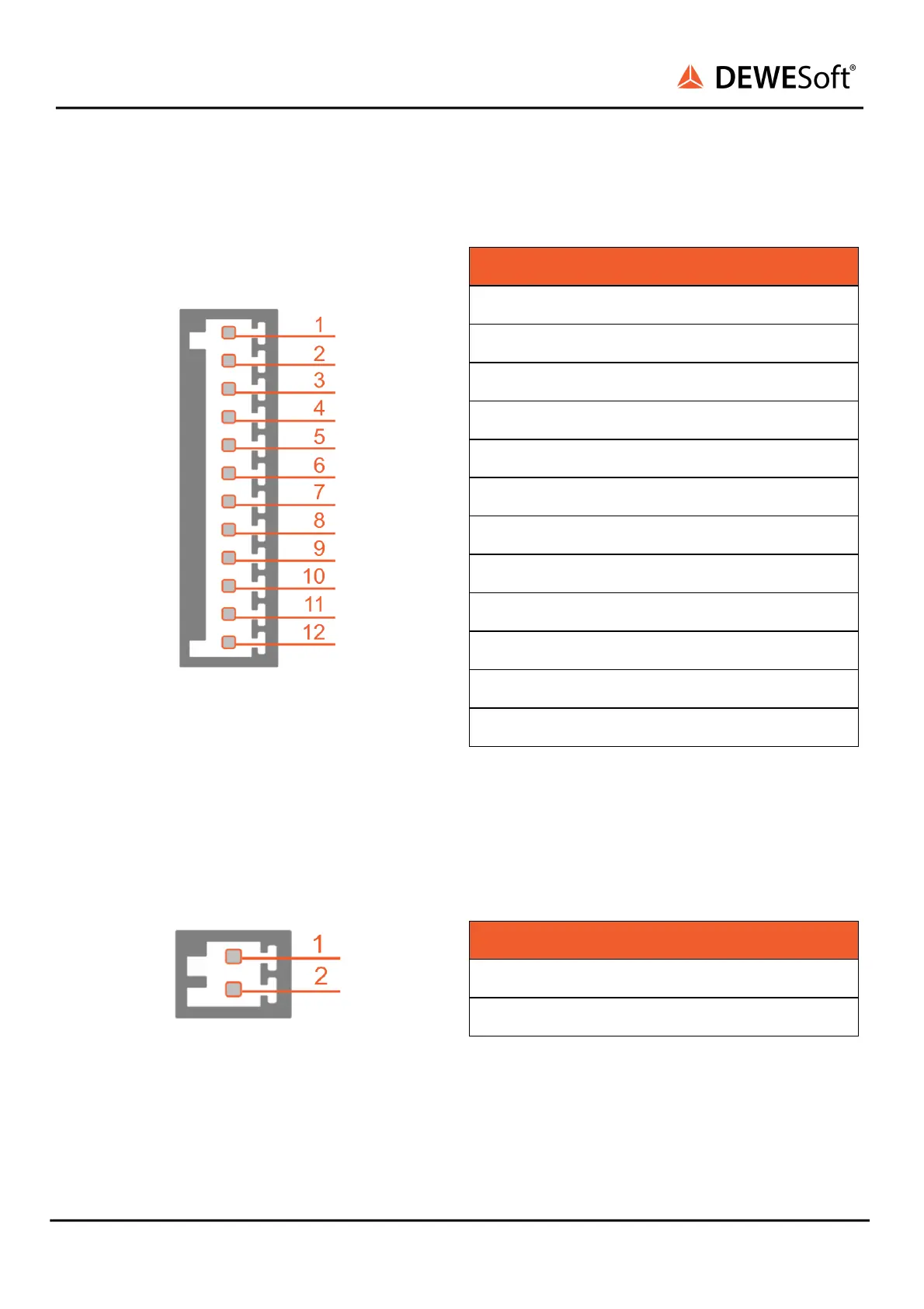

5.1.5.7. IOLITE-8xDI-4xDO: Digital Input: Pinout
Digital in connector: pin-out (terminal block male)
Pin
Name
Description
1
+
Input voltage
2
DI 1
Digital input 1
3
-
Input ground
4
+
Input voltage
5
DI 2
Digital input 2
6
-
Input ground
7
+
Input voltage
8
DI 3
Digital input 3
9
-
Input ground
10
+
Input voltage
11
DI 4
Digital input 4
12
-
Input ground
DO connector (on the device): OMNIMATE Signal SL 2.50/09/90G
Mating connector (for the cable): OMNIMATE Signal BLF 2.50/09/180
5.1.5.8. IOLITE-8xDI-4xDO: Power In: Pinout
Power in connector: pin-out (terminal block male)
Pin
Name
Description
1
+ PWR IN DO
Input voltage
2
- PWR IN DO
Output ground
PWR OUT connector (on the device): OMNIMATE Signal SL 2.50/02/90G
Mating connector (for the cable): OMNIMATE Signal BLF 2.50/02/180
IOLITE® V20-1 57 / 101
