DEWESOFT IOLITE Series User Manual

IOLITE® 
TECHNICAL REFERENCE MANUAL 



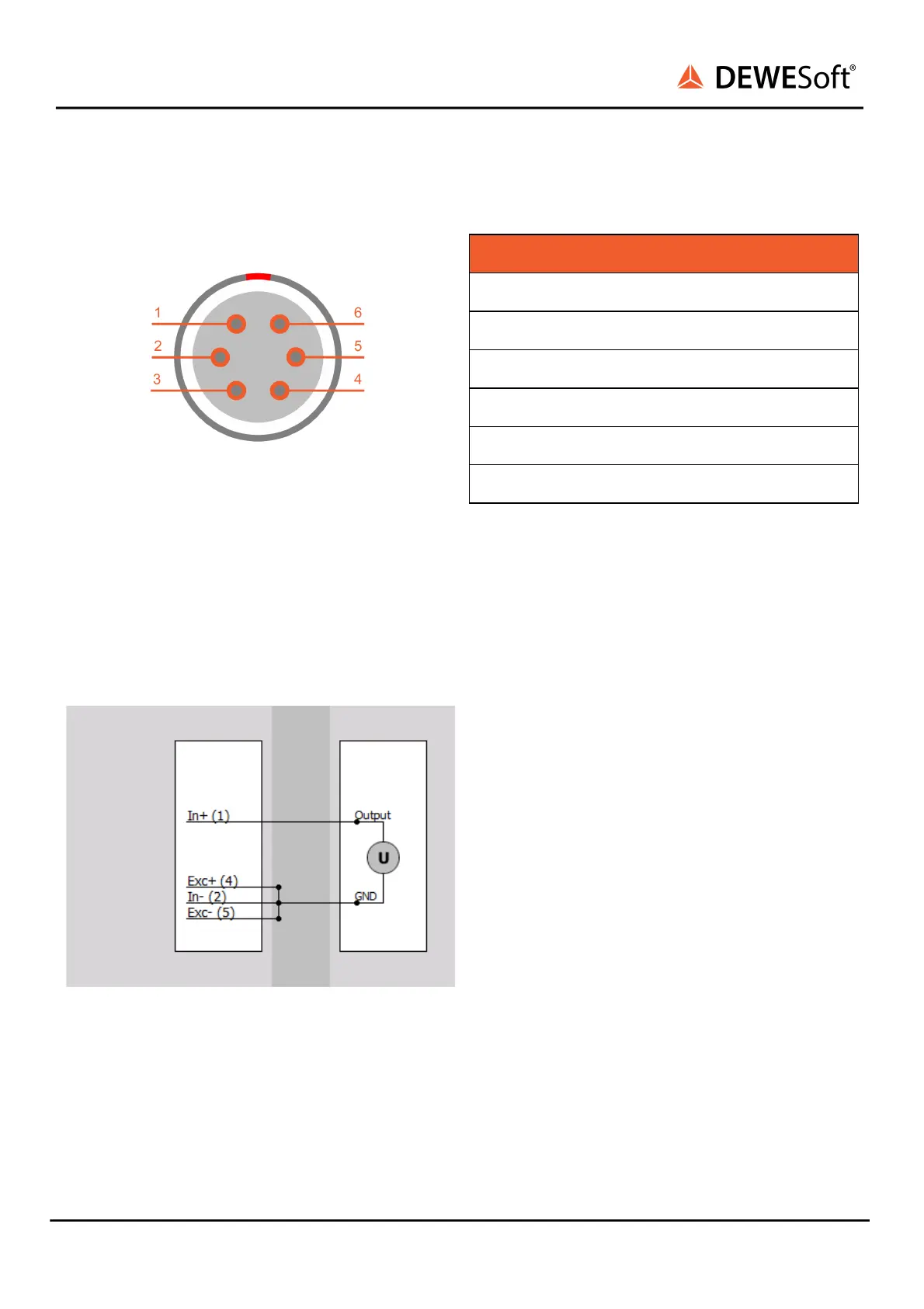

5.5.2.1. RTD: LEMO L0B6f Connector: Pinout
RTD connector: pin-out (6-pin LEMO female)

Pin 
Name 
Description 
1 
In+ 
Input+ 
2 
In- 
Input- 
3 
NC 
Do not connect 
4 
Exc+ 
Excitation+ 
5 
Exc- 
Excitation- 
6 
NC 
Do not connect 
RTD connector (on the device): EEA.0B.306.CLN 
Mating connector (for the cable): FGA.0B.306.CLAD21Z 

5.5.2.2. RTD: LEMO L0B6f Connector: Wiring diagram 
5.5.2.2.1. RTD: Voltage 



 
IOLITE® V20-1 69 / 101  
