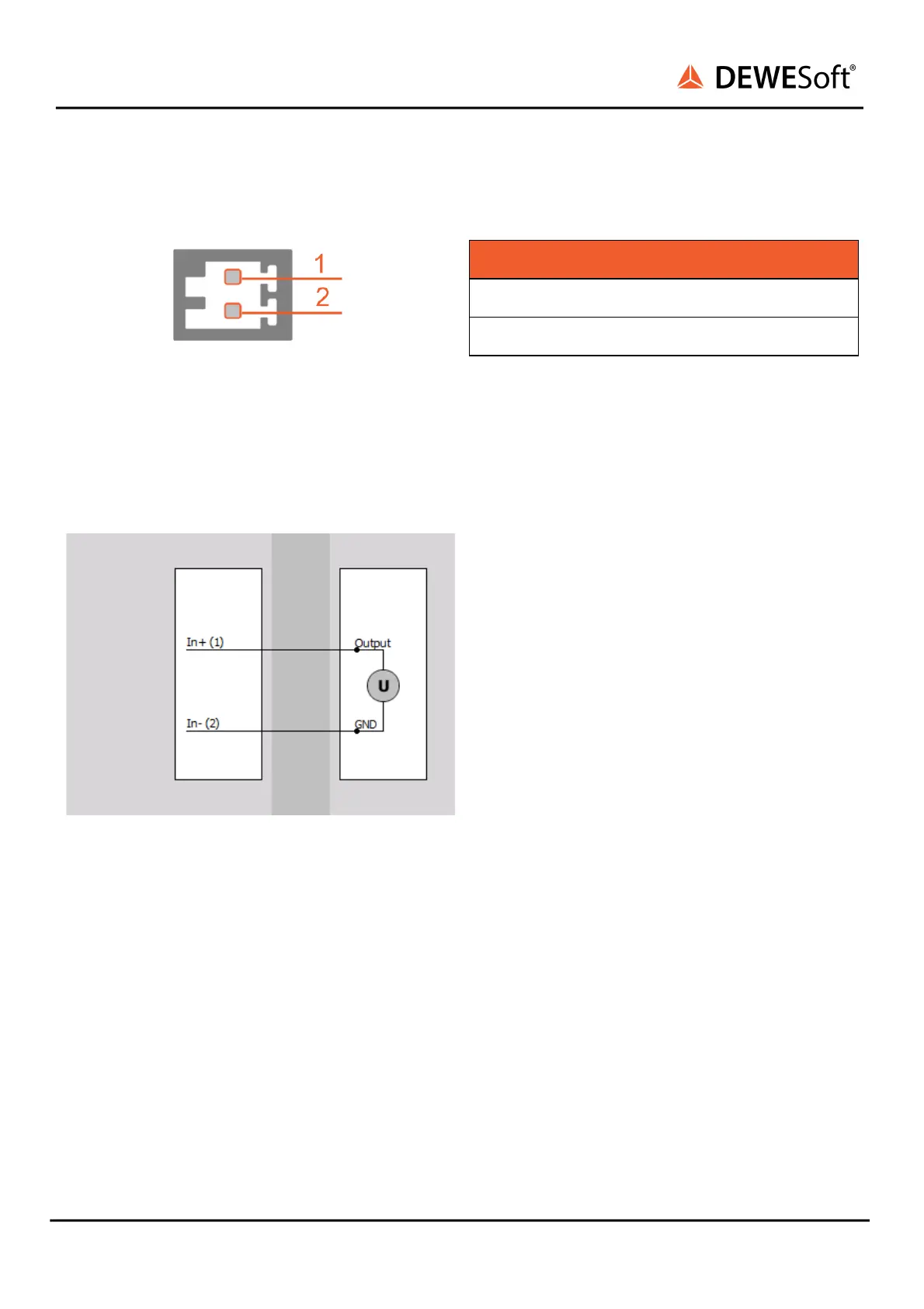

5.4.3.1. LV: TBLOCK Connector: Pinout 


LV connector: pin-out (TBLOCK male) 

Pin 
Name 
Description 
1 
IN+ 
Analog input + 
2 
IN- 
Analog input - 

PWR OUT connector (on the device): OMNIMATE Signal SL 2.50/02/90G 
Mating connector (for the cable): OMNIMATE Signal BLF 2.50/02/180 
5.4.3.2. LV: TBLOCK Connector: Wiring diagram 
5.4.3.2.1. LV: Voltage 




 
