IOLITE® 
TECHNICAL REFERENCE MANUAL 



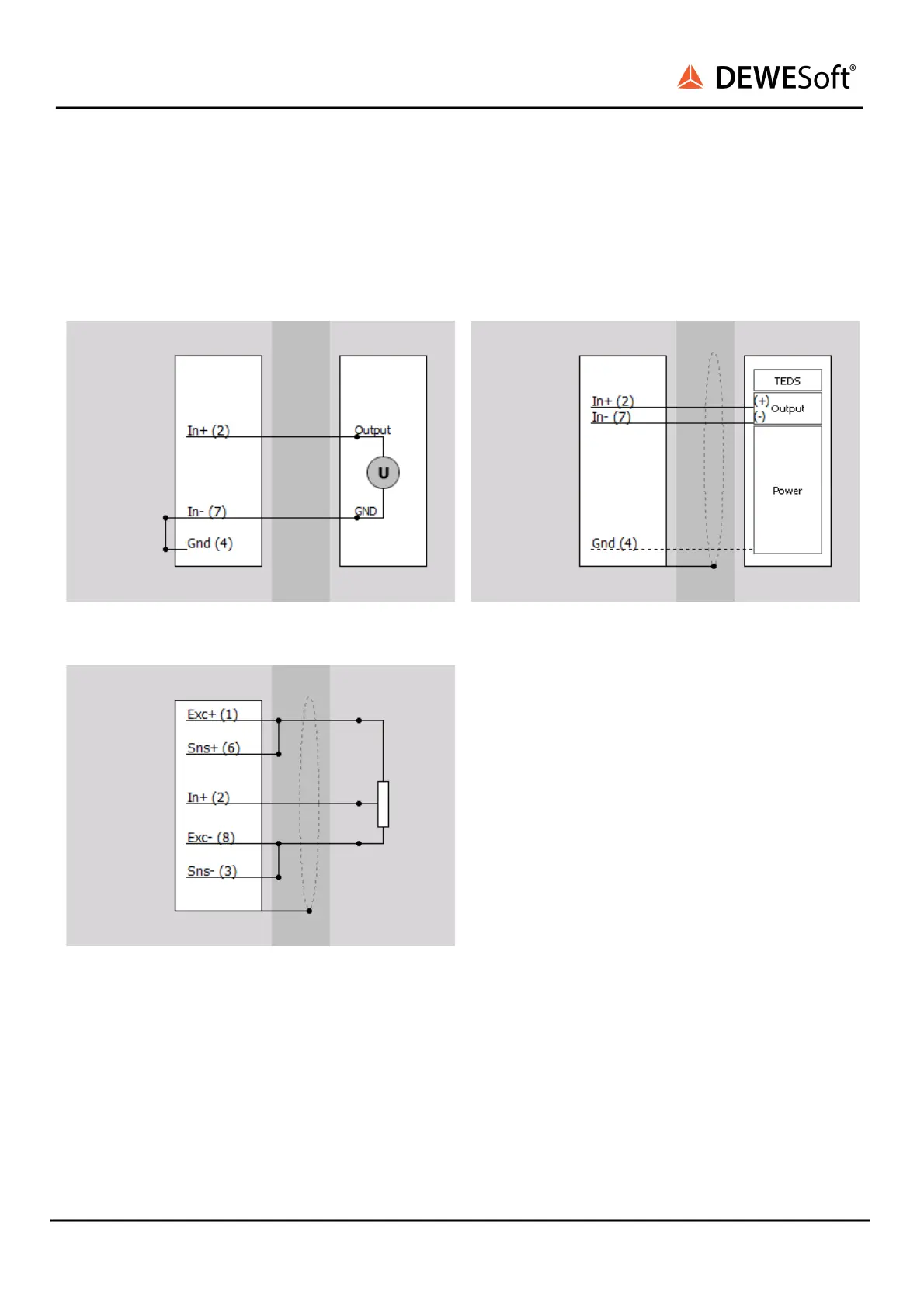

5.6.2.2. STG: DSUB-9 Connector: Wiring diagram 
5.6.2.2.1. STG: Voltage 
Single ended 



Differential 
Use only when sensor Output (+) and Output (-) 
are referenced to Gnd. Gnd must be connected 

5.6.2.2.2. STG: Potentiometer 




 
IOLITE® V20-1 77 / 101  
