Replacing the K1/K2 or M1/M2 motherboard
BEETLE /M-III - Service manual
73

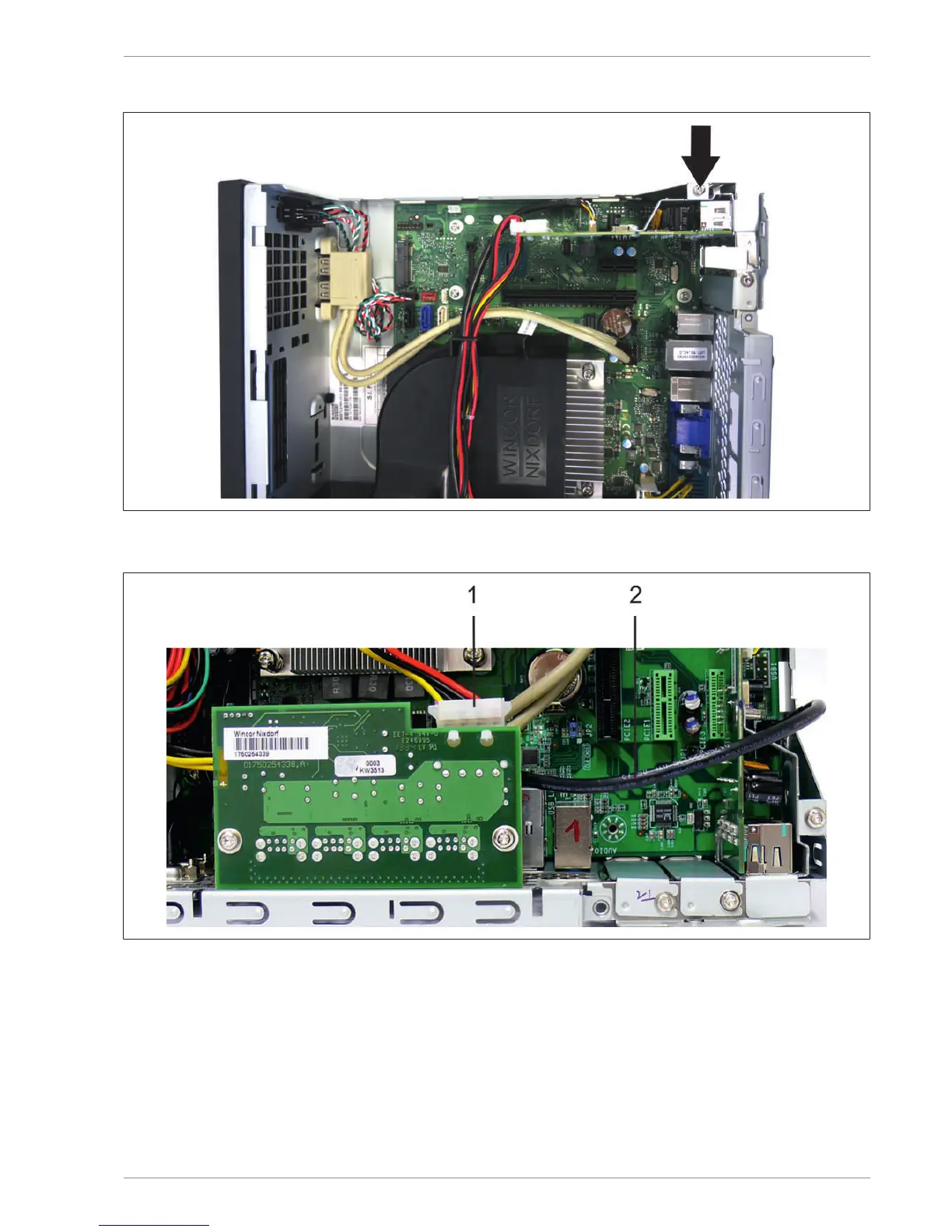

Remove the screw above the Retail card.
Remove the Retail card upwards.
Disengage the two plug connections on the USB hub.
1
Power supply
2
Data cable
72
74
